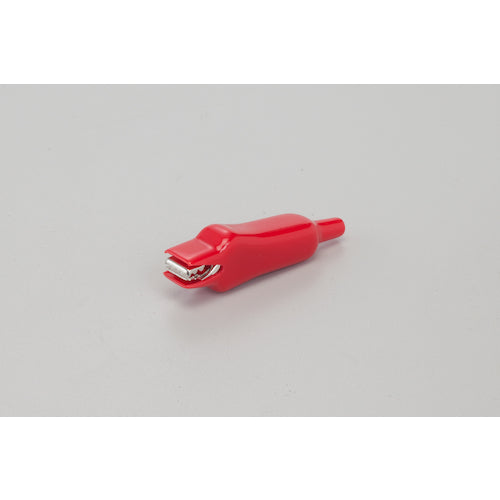

STAR CLIP Star Clip (with vinyl cover) SCSV-5AR 1 piece

Catalog number: SCSV-5AR Features: ● Strong gripping force allows safe, accurate and quick connection of electrical circuits. ● The vinyl cover has a notch so that the mouth of the clip can open wide. Applications: ● Electrical equipment, measuring instruments, earth terminals, etc. Specifications: ● Color: Red ● Rating (A): 5 ● Total length (mm): 67 ● Hole size (mm): 4 ● Insulation resistance: DC500V 1000MΩ or more ● Withstand voltage (V): AC1000 1 minute ● Body height (mm): 19 ● Insulation resistance: DC500V 1000MΩ or more ● Withstand voltage: AC1000V 1 minute Materials/Finish: ● Cover: PVC ● Clip: Brass (nickel plated)
