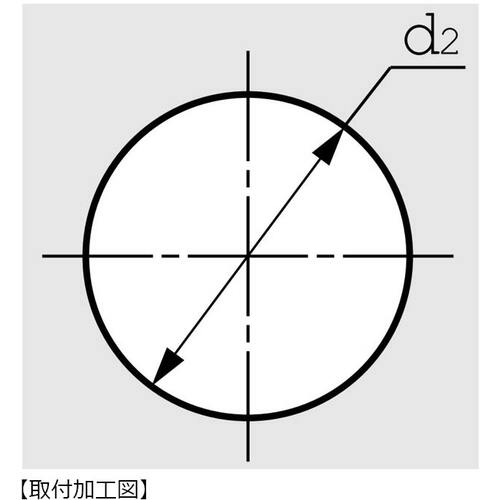

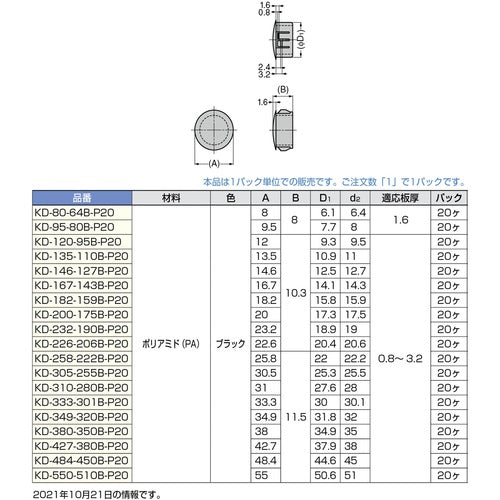

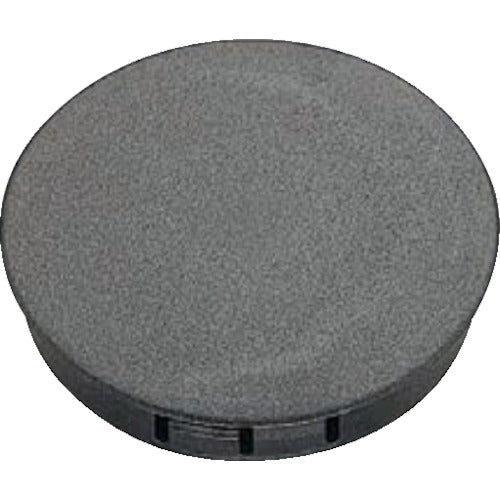

Catalog number: KD-200-175B-P20 Features: ●One-touch installation makes it easy to cover holes. ●Can be used on both sheet metal and woodworking, and is ideal as a hole-filling cap for wiring holes. ●KD-380-350B can also be used for slide hinge holes. Specifications: ●Color: Black ●Dimension (mm) B: 10.3 ●Dimension B (mm): 10.3 ●A (mm): 20 ●B (mm): 10.3 ●D1 (mm): 17.3 ●d2 (mm): 17.5 ●Compatible plate thickness (mm): 0.8 to 3.2 ●Cap thickness (mm): 10.3 ●Dimension A: 20 ●Cap inner diameter (mm): 17.3 ●Flame retardant: Uses material that complies with UL94V-2 Material/Finish: ●Polyamide (PA)
