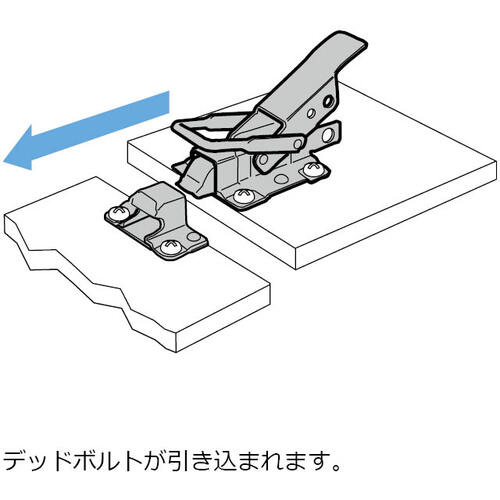

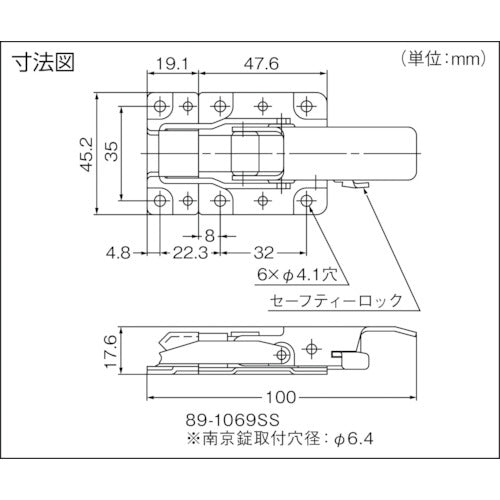

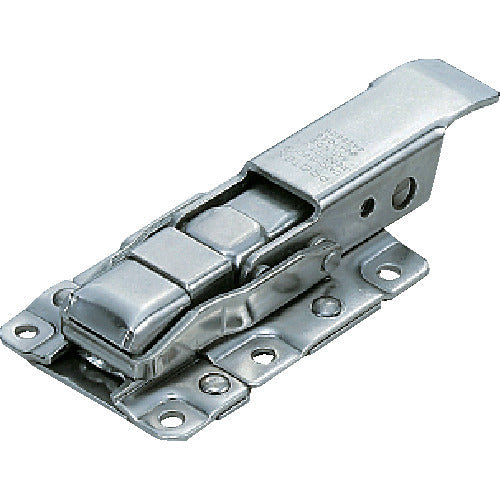

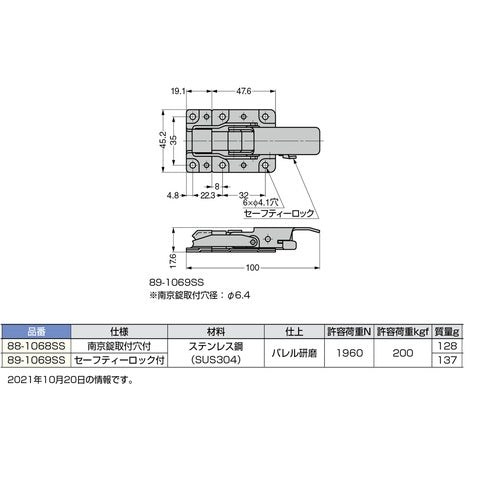

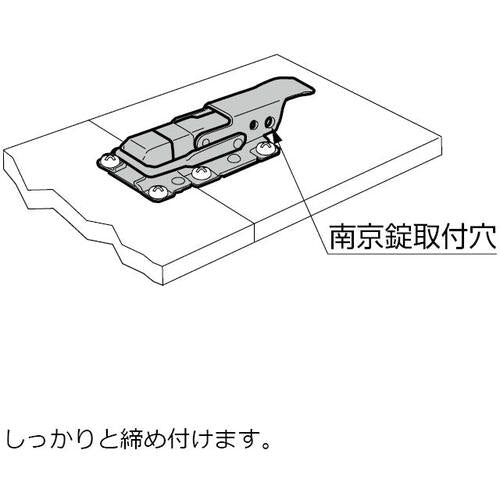

Catalog number: 88-1068SS Features: ●Excellent vibration resistance due to the deadbolt mechanism that firmly prevents shaking from three directions. ●Available in versions with safety lock and version with padlock mounting hole. ●Safety lock version can be released by pulling up the catch bolt while pressing the safety lock. ●Padlock mounting hole version can be used with padlocks and seals. Applications: ●For fastening doors. Specifications: ●Main body mounting hole dimensions (mm): 4.1 ●Allowable load (N): 1960 ●Allowable load (kgf): 200 ●Type: With padlock mounting hole ●Color: Stainless steel ●Length (mm): 100 ●Width (mm): 45.2 ●Height (mm): 17.6 ●Main body mounting hole dimensions: 4.1mm ●Number of holes: 6 ●With padlock mounting hole Φ6.4 Material/Finish: ●Stainless steel (SUS304) Caution: ●Be careful when operating as the spring is strong.
