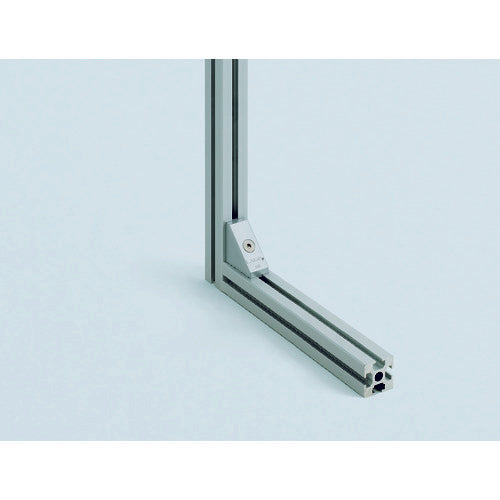

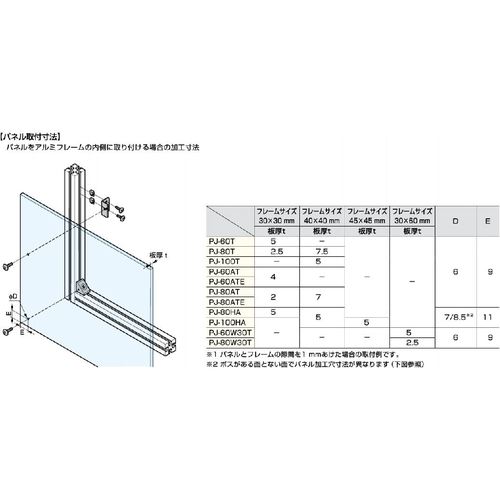

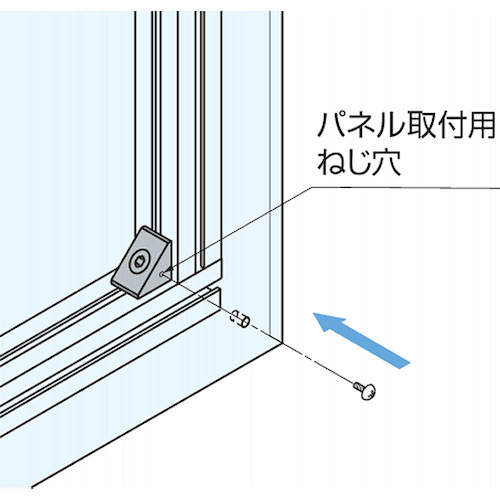

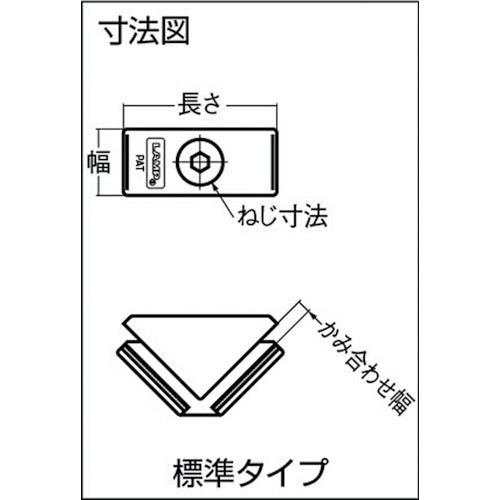

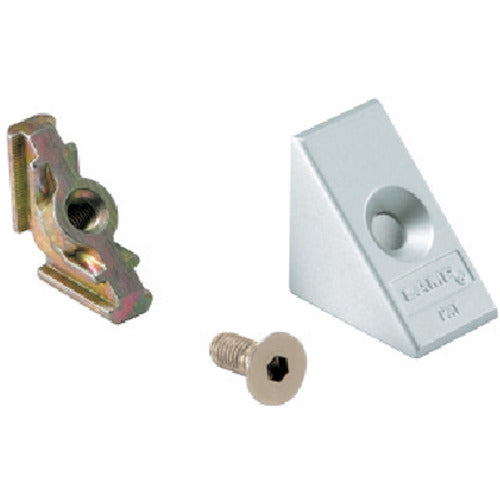

Catalog number: PJ-100T Features: ●A joint system that allows easy attachment of single-groove aluminum frames. ●No need for nuts or positioning, can be attached with one screw. ●Unique mounting system reduces work time. ●Can be used widely with aluminum profiles from various companies. ●The holed type allows you to attach a panel to the inside of the aluminum frame. ●With a panel mounting function, you can easily create a partition to prevent droplet infection. Uses: ●Parts for aluminum frames only. Specifications: ●Width (mm): 30 ●Length (mm): 70 ●Interlocking width (mm): 3.5-6.5 ●Screw dimensions: M10 x 25 ●Side hole diameter: M4 ●Compatible groove width (mm): 10 ●First-in type Material/Finish: ●Joint cover: Aluminum alloy ●Inner joint: Zinc alloy Note: ●The image is of one of the products in the same series, and the appearance may differ from that of this product number.
