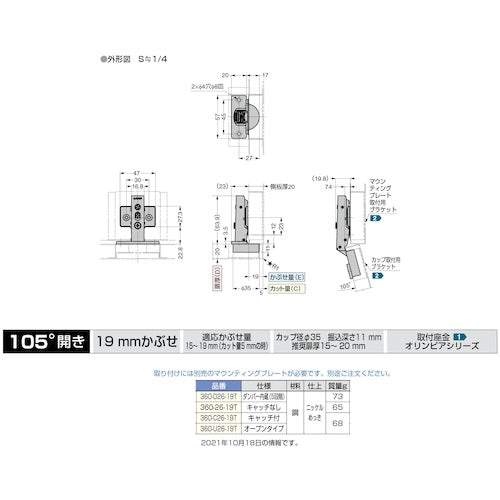

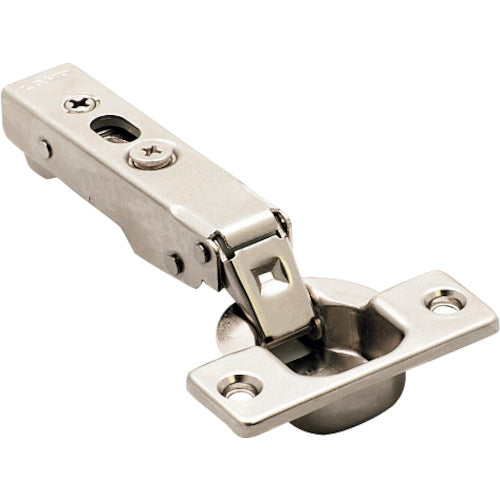

Catalog number: 360-C26-19T Features: ●The damper function allows you to adjust the speed in 5 steps. ●The open type specification is a push-open specification when used in combination with a push latch. Applications: ●For various industrial equipment. Specifications: ●Total length (mm): None ●Width (mm): 57 ●Thickness (mm): None ●Number of screw holes: 2 ●Hole diameter (mm): 4 ●D2 (mm): None ●Number of wood screws: None ●Opening angle (°): 105 ●Catch: Yes ●Length (mm): 63.9 ●Height (mm): 19.8 ●Recommended door thickness (mm): 15-20 ●Three-dimensional door adjustment function: Front and back +1.5mm, -2.5mm, top and bottom ±2.5mm, overlay (left and right) +0mm, -4mm Material/Finish: ●Steel Note: ●A mounting plate (sold separately) is required for installation. ●Please order separately.
