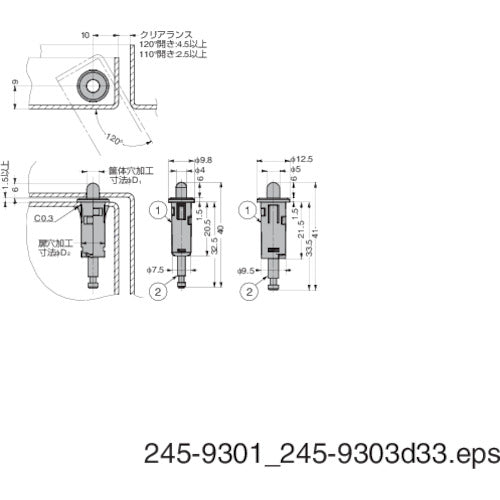

Catalog number: 245-9301 Features: ●The door can be attached and detached from the housing with one touch, significantly reducing installation time and contributing to cost savings. Specifications: ●Total length (mm): 40 ●Installation method: Insert ●Color: Body: Black Shaft: Silver ●Length (mm): 40 ●D1 (mm): 4.1 ●Applicable plate thickness: 1.0-1.2 ●Load capacity (N/2 pieces): 39 ●Load capacity (kgf/2 pieces): 4.1 ●Load capacity (kg) when using 2 pieces: 4.0 ●D2 (mm): 7.5 ●Flame retardant: Uses material that complies with UL94HB. Material/Finish: ●Polyamide (PA)
