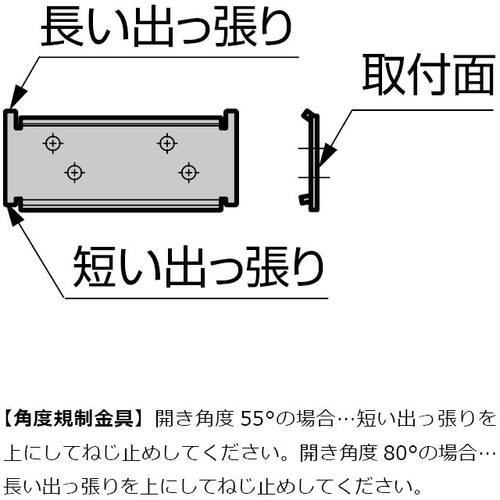

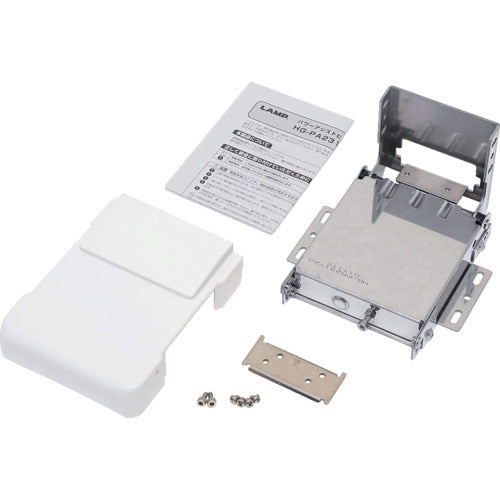

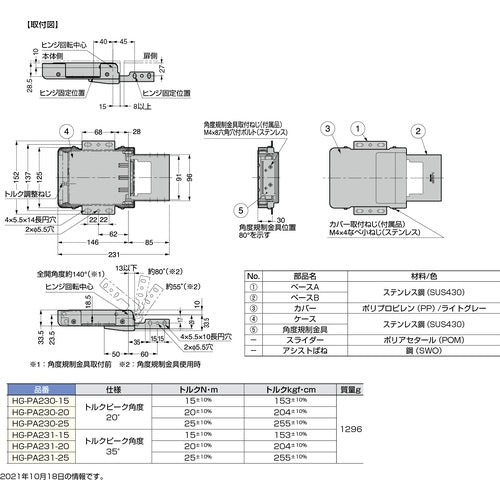

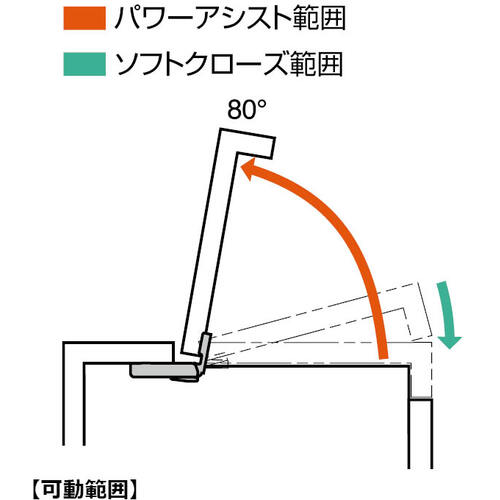

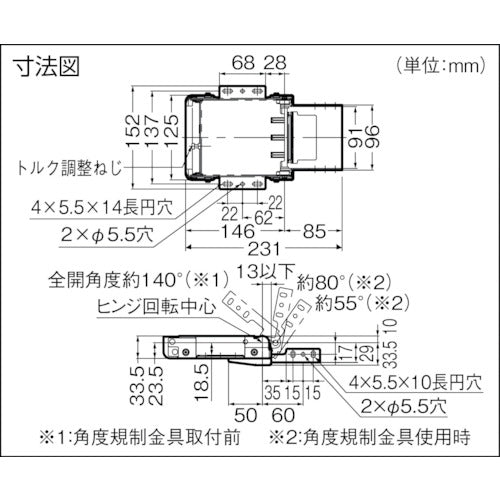

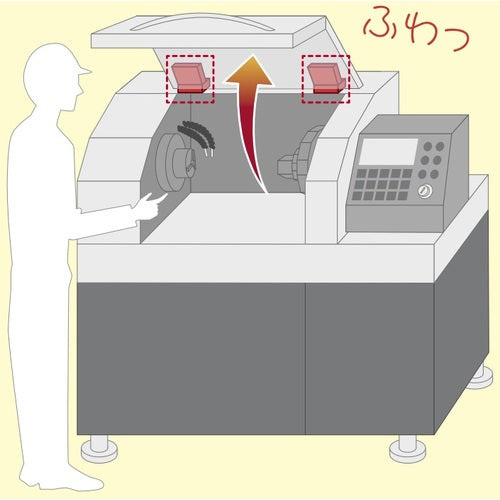

Catalog number: HG-PA231-20 Features: ●The type with a torque peak angle of 35° (HG-PA231 type) is ideal for tall and short lids. ●The spring's reaction force makes it easy to lift heavy lids (power assist function). ●The damper works when closing (soft close function). ●The torque can be adjusted by turning the adjustment screw (±5%). ●The opening angle can be regulated to 55° or 80°. ●The opening angle can also be regulated between 15° and 90° (custom order available). Applications: ●Heavy lids for semiconductor manufacturing equipment, analytical equipment, medical equipment, etc. ●For tall and short lids ●Medical equipment ●Analytical equipment ●Semiconductor equipment ●Various machines, etc. ●Various industrial equipment. Specifications: ●Total length (mm): 231 ●Width (mm): 152 ●Thickness (mm): 43.5 ●Torque (N・m): 20±10% ●Torque peak angle (°): 35 ●External mounting ●Operating temperature range: 0 to 40°C Material/Finish: ●Base: Stainless steel (SUS430) ●Cover: Polypropylene (PP) Caution: ●Install a separate stopper on the housing to prevent the door from opening or closing beyond the movable angle ●The center of gravity positions of the corresponding doors are different for the HG-PA200 and HG-PA201 models ●The image is of one of the products in the same series, and the appearance may differ from that of this part number.
