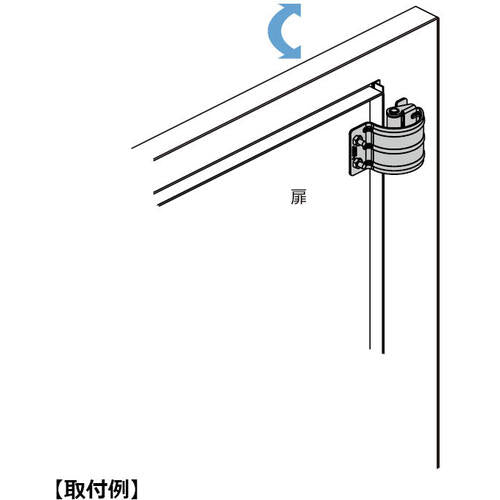

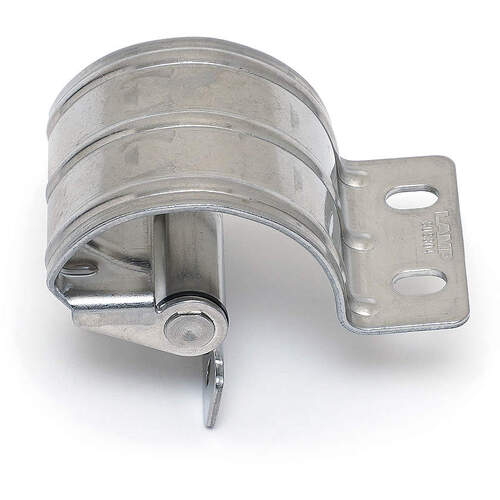

Catalog number: HGTUWA07 Features: ●Attaches to the back of the door so that the hinge is not visible from the front, and can hold the door at any angle. ●Can be used with the axis oriented horizontally or vertically. Applications: ●For various industrial equipment. Specifications: ●Total length (mm): 61 ●Width (mm): 50 ●Thickness (mm): 1.5 ●Rated torque (N・m): 0.7 (+40%, -20%) ●Number of screw holes: 4 ●Torque (N・m): 0.7 (+40% -20%) ●Length (mm): 40 ●Torque (kgf・cm): 7.1 (+40% -20%) ●Mechanism that can be used with the axis oriented horizontally or vertically Material/Finish: ●Stainless Steel Note: ●The image is of one of the products in the same series, and the appearance may differ from that of this product number.
