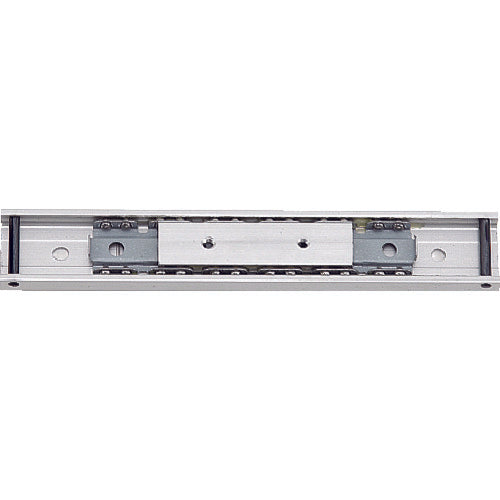

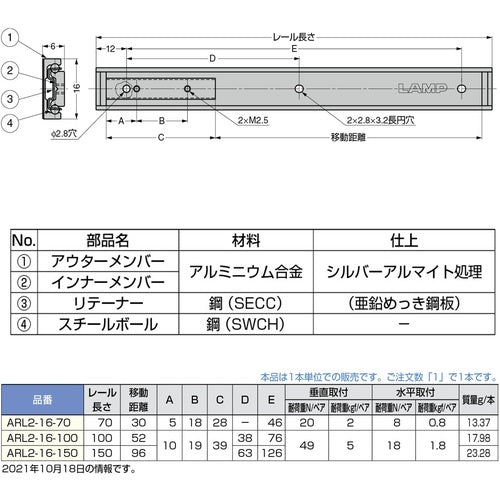

Catalog number: ARL2-16-100 Features: ●The height dimension is small at 16 mm, so it can be used in a variety of locations. ●The outer and inner members are made of aluminum extrusions, making them lightweight. Specifications: ●Width (mm): 6 ●Height (mm): 16 ●Length (mm): 100 ●Travel distance (mm): 52 ●Rated load (N) pair/vertical: 49 ●Type: Linear type ●Rail length L (mm): 100 ●Made of aluminum alloy Material/Finish: ●Outer rail/inner rail: Aluminum alloy ●Surface treatment: Silver anodized ●Retainer/ball: Steel
