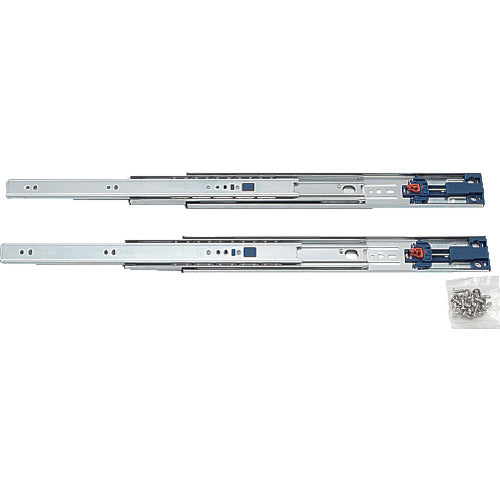

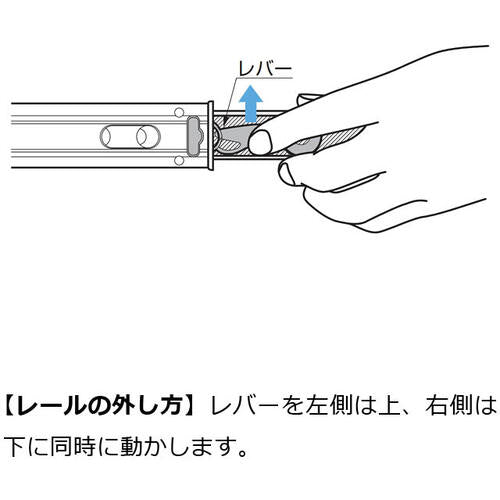

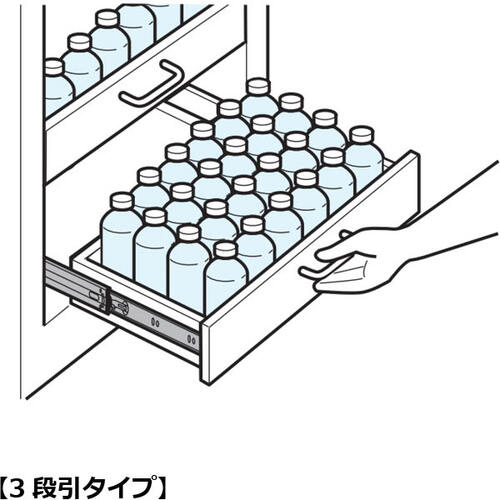

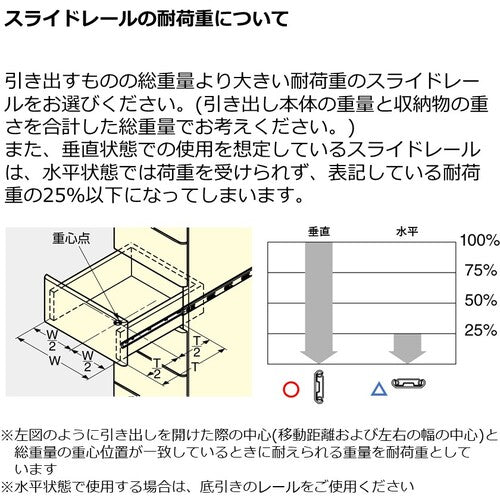

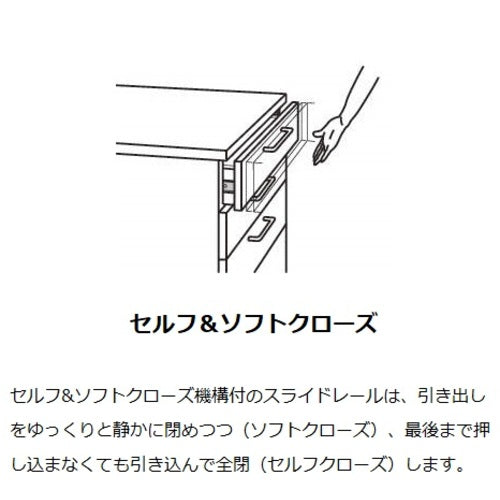

Catalog number: 4670-350 Features: ● Slide rail with self- and soft-closing mechanism. ● The position where the self- and soft-closing mechanism operates is 20 mm before the rail is completely closed for rail lengths up to 350 mm, and 36 mm for rail lengths of 400 mm or more. ● Easy to install, just like conventional rails. ● The rail can be attached and detached by operating the lever. ● When installing, try to set the width to 12.7 to 13.5 mm. Applications: ● For cabinets. Specifications: ● Width (mm): 12.5 ● Height (mm): 45.5 ● Length (mm): 350 ● Travel distance (mm): 353 ● Rated load (N) pair/vertical: 245 ● Type: With self- and soft-closing function ● Rail length L (mm): 350 ● Stroke length S (mm): 353 ● Self- and soft-closing mechanism Material/Finish: ● Steel ● Surface treatment: Glossy chromate treatment Set contents/Accessories: ● Cross-recessed truss tapping screw M4 x 12
