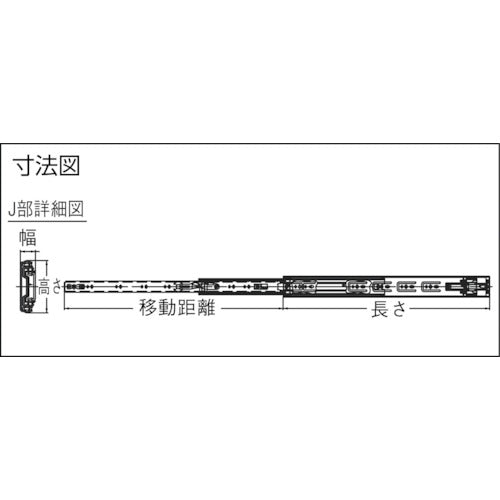

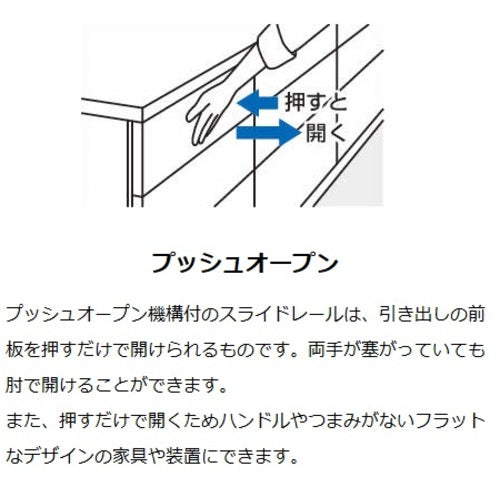

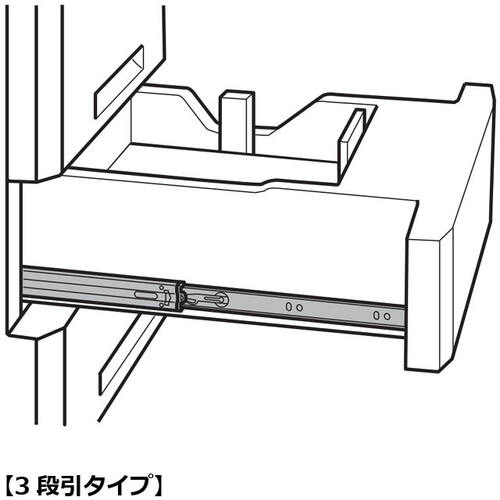

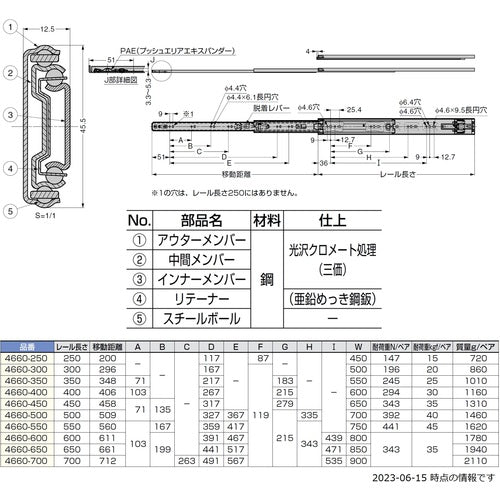

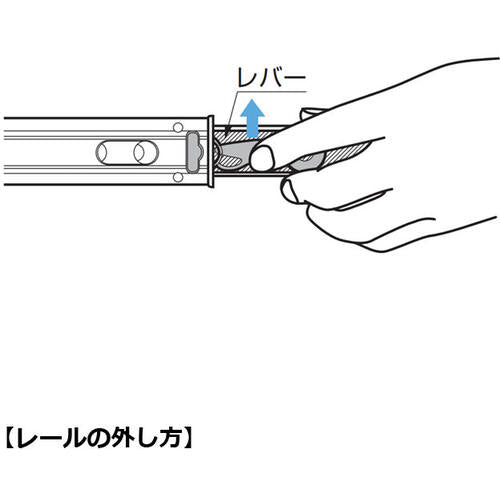

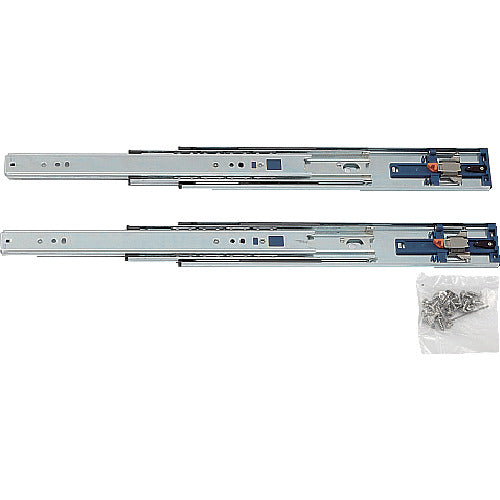

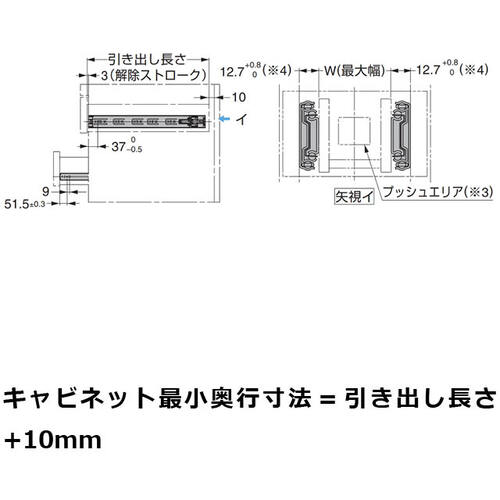

Catalog number: 4660-300 Features: ● Slide rail with push-open mechanism. Therefore, no handles or knobs are required, resulting in a cabinet with a flat design. ● Just push the front panel to open the drawer. ● 3-stage pull design allows the drawer to slide widely. ● The rail can be attached and detached by operating the lever. ● Comes with a new pull protect device mechanism that minimizes damage to the mechanism when the drawer is forcibly pulled out. ● Equipped with a unique new push area expander mechanism that expands the range in which the drawer can be opened by pushing the front panel. ● When installing, try to set the width to 12.7 to 13.5 mm. Uses: ● For cabinets. Specifications: ●Width (mm): 12.5 ●Height (mm): 45.5 ●Length (mm): 300 ●Travel distance (mm): 296 ●Rated load (N) pair/vertical: 196 ●Type: Push open ●Rail length L (mm): 300 ●Stroke length S (mm): 296 ●Push open mechanism Material/Finish: ●Steel ●Surface treatment: Glossy chromate treatment Set contents/Accessories: ●Philips recessed truss tapping screw M4 x 12 ●Hexagonal wrench
