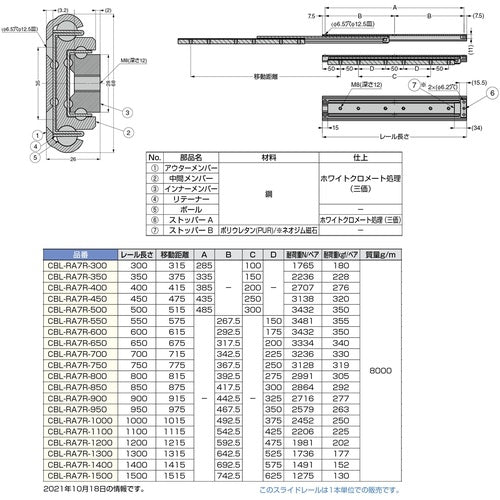

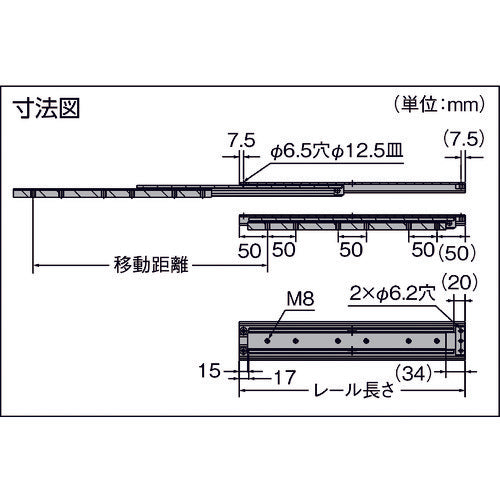

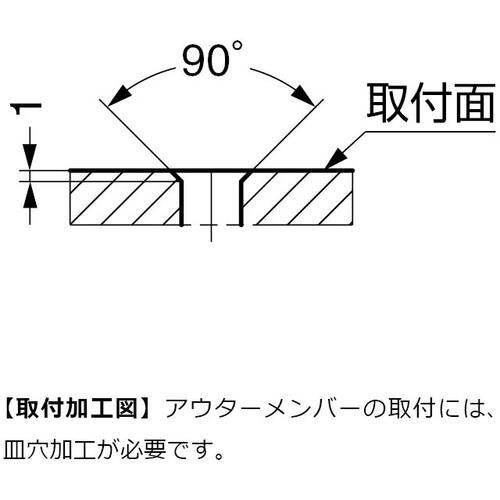

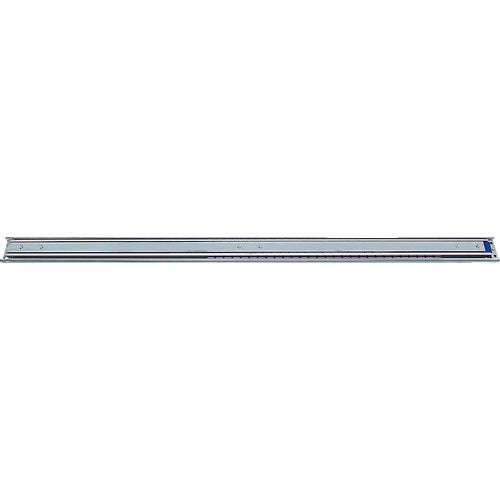

Catalog number: CBL-RA7R-1200 Features: ●A 3-stage sliding rail that allows the inner rail to be fully pulled out. ●The rail cannot be removed. Applications: ●Various industrial equipment. Specifications: ●Width (mm): 26 ●Height (mm): 68 ●Length (mm): 1200 ●Travel distance (mm): 1215 ●Rated load (N) pair/vertical: 1981 ●Type: For ultra-heavy loads ●Rail length L (mm): 1200 ●Stroke length S (mm): 1215 ●For ultra-heavy loads Material/Finish: ●Steel ●Surface treatment: White chromate treatment (trivalent) ●End stopper: Polyurethane (PUR) Caution: ●When attaching the housing (cabinet side) and the rail, chamfer the screw holes on the housing side to ensure secure tightening. ●The load capacity is the static load at the center of the rail when one pair (two pieces) of slide rails are used vertically and both are fully extended.
