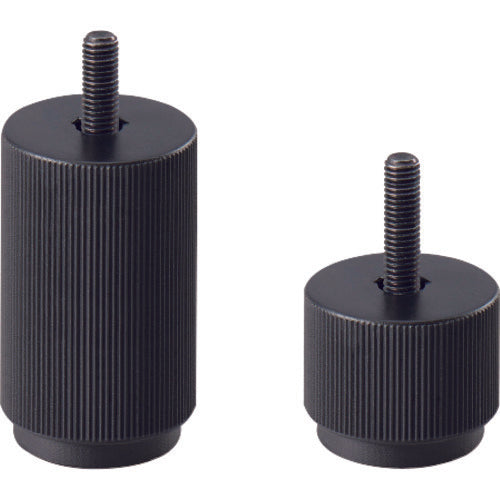

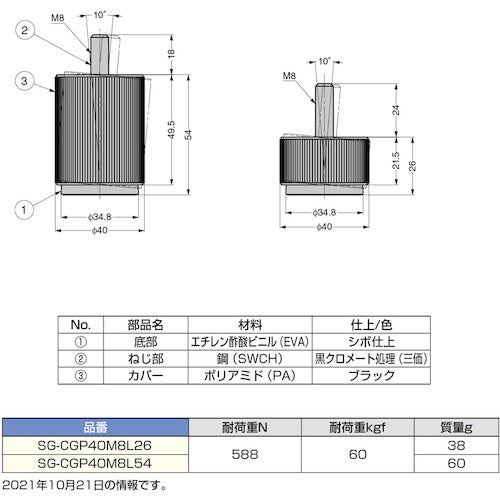

Catalog number: SG-CGP40M8L26 Features: ●The adjuster body has a swivel mechanism. Specifications: ●Allowable load (kgf): 60 ●Thread size: M8 ●Thread length (mm): 24 ●Total height (mm): 50 ●Base diameter (mm): Φ40 ●Color: Black ●Load capacity (N): 588 ●Load capacity (kgf): 60 ●Materials: Bottom: Ethylene vinyl acetate (EVA) Threaded part: Steel (SWCH) Cover: Polyamide (PA) ●Swivel angle: Approximately 10° Material/Finish: ●Bottom: Ethylene vinyl acetate (EVA) ●Threaded part: Steel (SWCH) ●Cover: Polyamide (PA) Caution: ●A non-slip material is used for the bottom. ●Do not drag the product forcibly to prevent scraping or peeling. ●If you cannot turn it by hand, lightly lift the attached product and adjust it. ●The image is of one of the products in the same series, and the appearance may differ from that of this product number.
