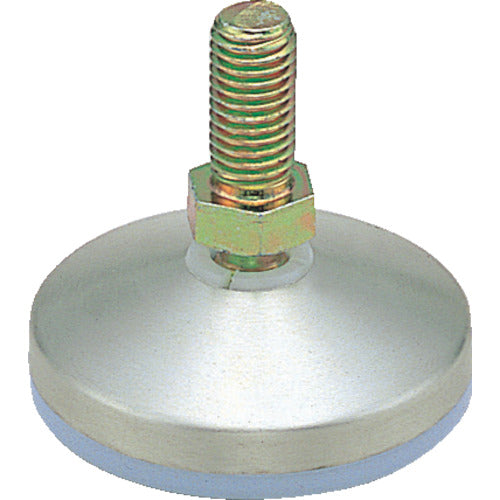

SUGATSUNE (200140032) RP-40N3-G Rotary Plane RP-40N3 1 piece

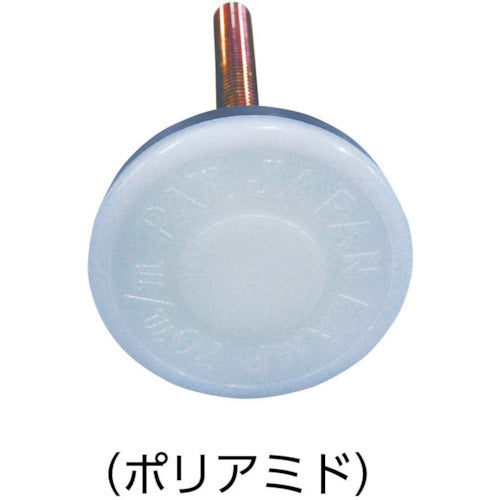

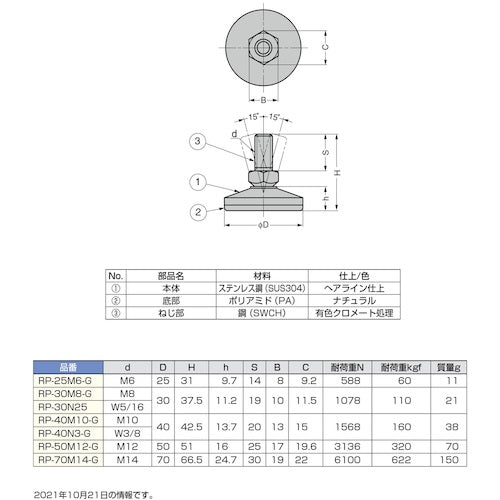

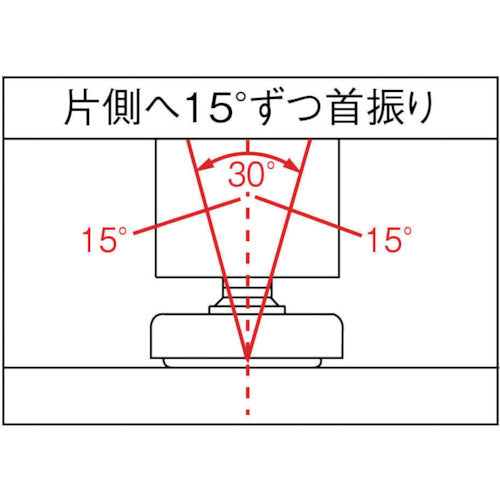

Catalog number: RP-40N3 Features: ●Even if the legs are angled or the floor surface is inclined, it can maintain a horizontal position. Applications: ●Measuring instruments, cabinets, vending machines. Specifications: ●Allowable load (kgf): 160 ●Screw dimensions: W3/8 ●Screw length (mm): 20 ●Total height (mm): 42.5 ●Base diameter (mm): 40 ●Color: Silver ●Swing angle (°): 15 ●Allowable load (daN): 157 ●Swing angle: Approximately 30° Materials/Finish: ●Screw: Steel ●Base: Stainless steel (SUS304) ●Bottom: Polyamide (PA)
