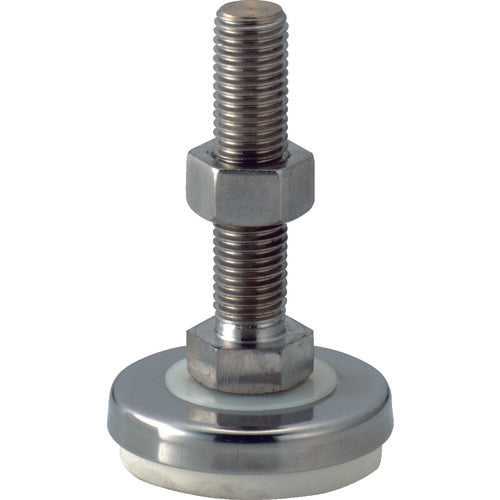

SUGATSUNE (200140620) ADWHS40-8-60 Stainless steel adjuster ADWHS40-8-60 1 piece

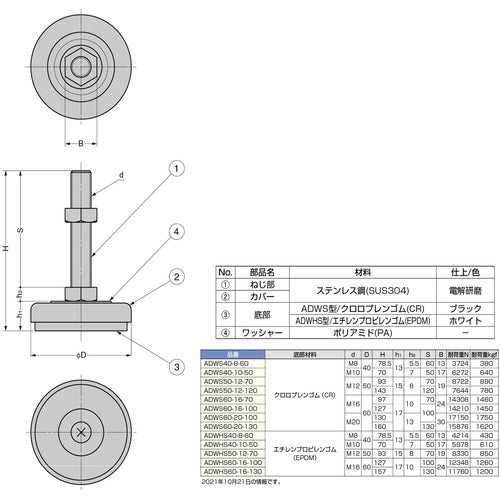

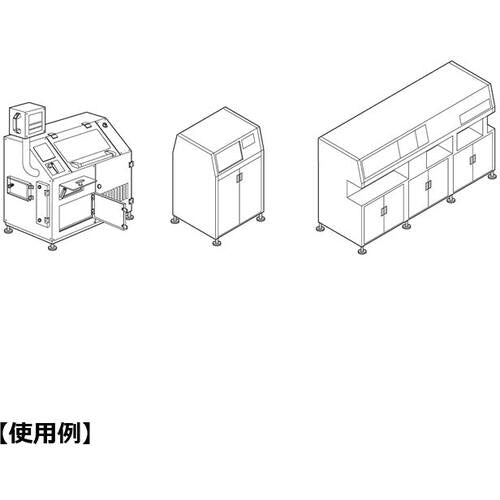

Catalogue number: ADWHS40-8-60 Features: ●Screw and cover are made of stainless steel and have excellent corrosion resistance. Applications: ●Machine tools, vending machines, conveyors, computer racks, control panels, scientific and chemical machines, OA equipment, various fixtures, etc. Specifications: ●Allowable load (kgf): 430 ●Screw dimensions: M8 ●Screw length (mm): 60 ●Total height (mm): 78.5 ●Base diameter (mm): 40 ●Allowable load (N): 3724 ●Bottom material has excellent heat and weather resistance. Material/Finish: ●Screw: Stainless steel (SUS304) ●Base: Stainless steel (SUS304) ●Bottom: Ethylene propylene rubber (EPDM)
