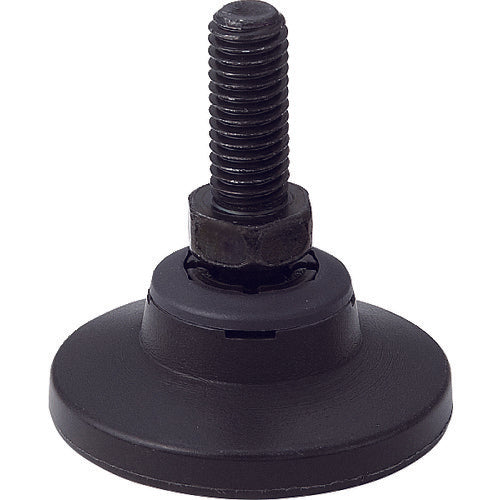

SUGATSUNE (200142504) SG-40M8 System Foot SG-40M8 1 piece

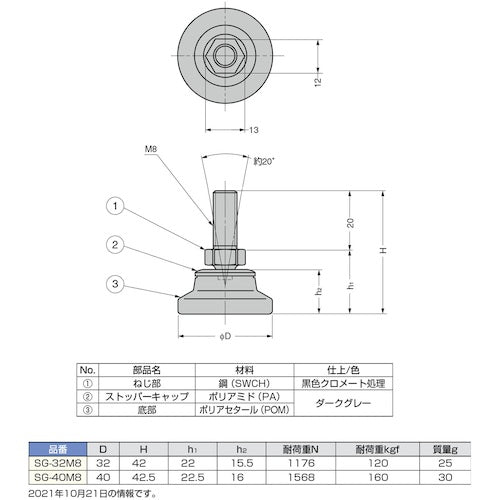

Catalog number: SG-40M8 Features: ●The screw part has a 20° swivel mechanism, so it can remain horizontal even if the legs are angled or the floor is inclined. Applications: ●Measuring instruments, measuring devices, etc. Specifications: ●Allowable load (kgf): 160 ●Screw dimensions: M8 ●Screw length (mm): 20 ●Total height (mm): 42.5 ●Base diameter (mm): 40 ●Color: Dark gray ●Swivel angle (°): Approx. 20 ●Load capacity (N): 1568 ●Material: Steel (screw part) / Polyacetal (bottom part) ●Load capacity: 1568N (160kgf) Material/Finish: ●Screw part: Steel (SWCH) ●Stopper cap: Polyamide (PA) ●Bottom part: Polyacetal (POM)
