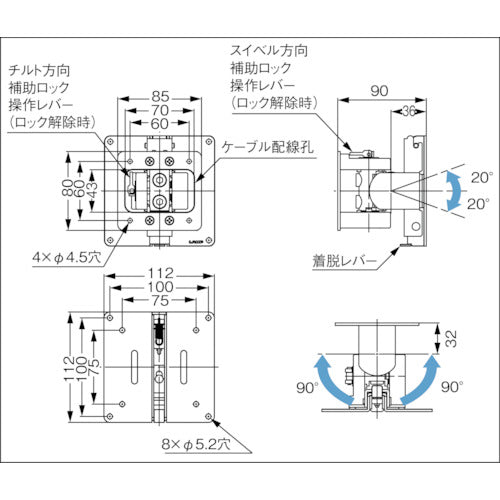

Catalog number: KA-T100S50 Features: ●Monitor mount that can be attached and detached with one touch. ●Free-stops at any position in the tilt direction and swivel direction. ●The auxiliary lock can be applied at any position by operating the lever, preventing the monitor from sagging due to micro-vibrations. ●Even if a heavy load is applied when the auxiliary lock is engaged, the auxiliary lock is temporarily released, making it less likely to break. ●The mounting holes on the monitor side have a hole pitch that complies with the VESA standard (75 x 75 mm, 100 x 100 mm). ●Compatible monitor size: 1222.9 inches (up to approximately 10.0 kg) Applications: ●LCD monitors for machine tools, office equipment, medical equipment, etc. Specifications: ● Compatible monitor size: 12 to 22.9 inches (up to approximately 10 kg) ● Width (mm): 112 ● Height (mm): 112 ● Installation method: Wall-mounted ● Torque (tilt direction) (N・m): 10.0 ± 20% ● Torque (tilt direction) (kgf・cm): 102.0 ± 20% ● Torque (rotation direction) (N・m) 5.0 ± 20% ● Torque (rotation direction) (kgf・cm): 51.0 ± 20% ● Hole pitch: 75 x 75 mm, 100 x 100 mm (compliant with VESA standards) ● Torque (tilt direction): 10.0 ± 20% N・m ● Torque (rotation direction): 5.0 ± 20% N・m ● Installation method is wall-mounted. Material / Finish: ● Steel and others Caution: ● The auxiliary lock will be temporarily released when a strong load is applied, but after the auxiliary lock is engaged, do not force the monitor to move. ●After installing the monitor, make sure the attachment/detachment lever is fully returned to the locked position. ●Do not operate continuously (repeatedly in a short period of time). ●Do not expose the product to water, oil, lubricants, etc.
