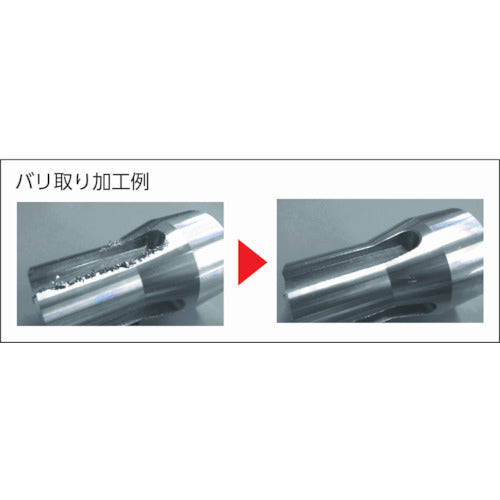

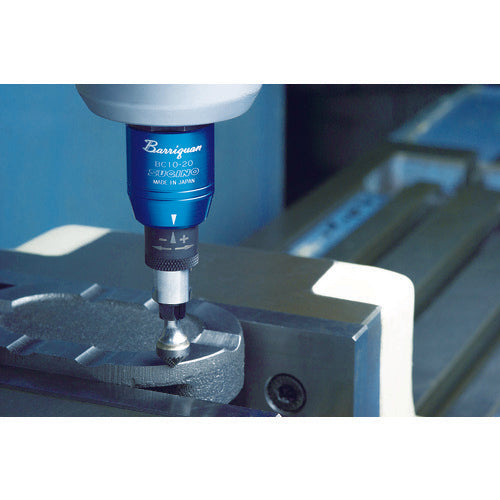

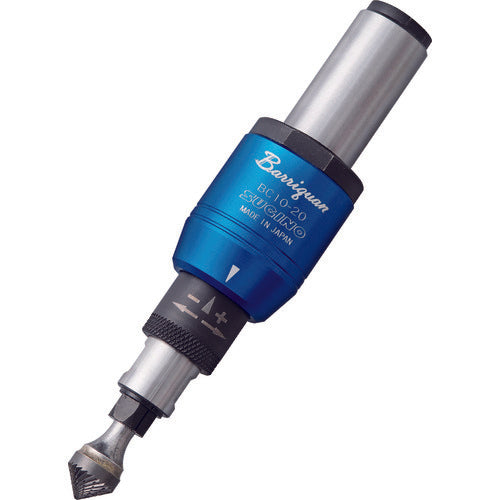

Catalogue number: BC10-20 Features: ●The 10mm telescopic function allows it to follow variations in workpiece dimensions and shapes, enabling uniform deburring with a simple program. ●The spring load for telescopic movement can be adjusted while still attached to the processing machine, allowing it to be quickly set according to the size of the burr and the cutter. Applications: ●For deburring castings and die-cast products. ●For removing burrs from press-molded products. Specifications: ●Chuck diameter (mm): 6 ●Shank diameter (mm): 20 ●Shank length (mm): 40 ●Floating amount (mm): 10 ●Total length (mm): 120
