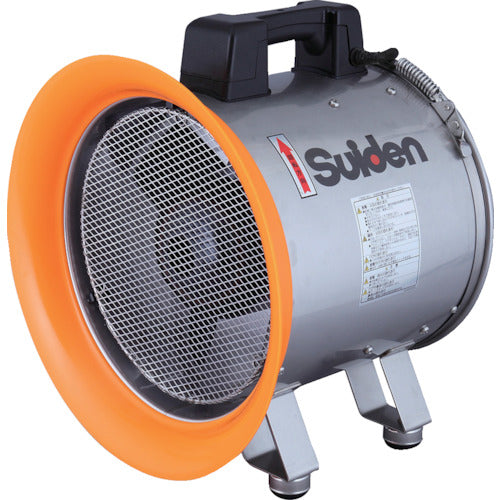

Suiden exhaust fan (axial fan blower) blade 288mm single phase 100V anti-corrosion type SJF-300CP-1 1 unit

Catalog number: SJF-300CP-1 Features: ● The casing is made of stainless steel, which is resistant to moisture and corrosion. ● The motor surface is finished with a corrosion-resistant paint. Applications: ● Exhaust of welding fumes from shipbuilding, steel, and canning factories. ● Exhaust of welding fumes and oil smoke. ● Supply of cool air as a ventilation fan without the need for duct work. Specifications: ● Power supply (V): Single phase 100 ● Air volume (［［M3］］/min) 50Hz: 47 ● Air volume (［［M3］］/min) 60Hz: 54 ● Suitable duct diameter (mm): 320 ● Noise level (dB(A)) 50/60Hz: 81/84 ● Blade diameter (mm): 288 ● Number of fan blades (pieces): 4 ● Frequency (Hz): 50/60 ● Output (kW) (50/60Hz ): 0.55●Power consumption (W) (50/60Hz): 430/570●Standard power consumption charge (50Hz): 11.61●Standard power consumption charge (60Hz): 15.39●External dimensions (mm) width: 390●External dimensions (mm) height: 423●External dimensions (mm) depth: 330●Power cord length: 2m●Compatible with 50/60Hz●Can be customized to accommodate different voltages from a single unit Note:●Duct sold separately
