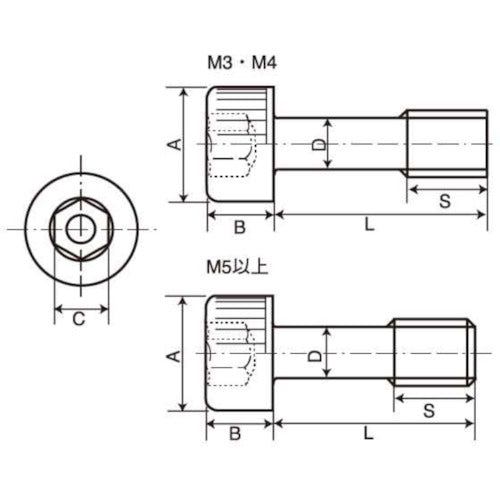

Catalog number: A0-02-J050-0080-0250-00 Features: ●The body is thinner than the threaded part and catches in the screw hole, so the screw will not fall out. ●It can prevent the screw from falling out when removing the cover. Uses: ●For fixing protective covers and inspection covers for equipment and devices. ●For preventing the screw from falling out when removing the cover. Specifications: ●Dimensions (mm) d: M8 ●Dimensions (mm) L: 25 ●Thread pitch (mm): 1.25 ●Threaded part length (mm): 10 ●Body diameter (mm): 6.3 ●Hexagonal part height (mm): 8.0 ●Thread diameter (mm): M8 Material/Finish: ●Stainless steel (SUS303, SUS304, SUSXM7, etc.)
