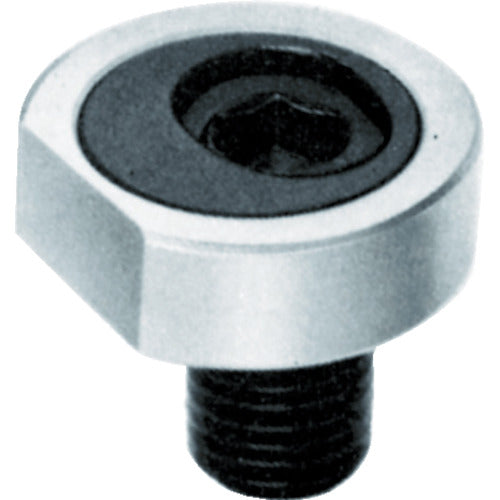

SUPER Screw Lock (M16) SR16 1 piece
SUPER Screw Lock (M16) SR16 1 piece
Regular price
¥4,171
Regular price
Sale price
¥4,171
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

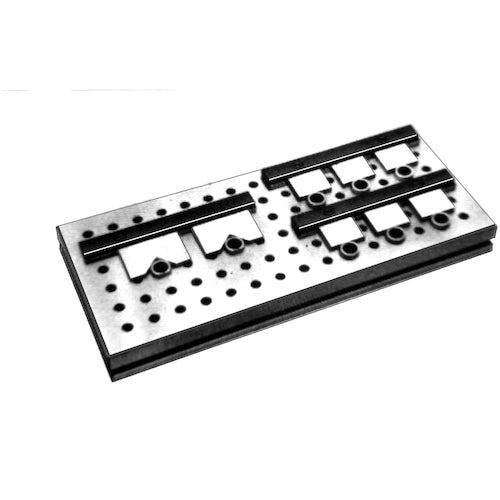

Catalogue number: SR16 Features: ●Ideal for clamping thin workpieces and mass production. ●Can easily clamp irregularly shaped workpieces. ●Clamping operation is simple and speedy. ●Material and hardness suitable for repetitive work, no wear on the contact surface of the workpiece or clamp ring. Applications: ●For clamping thin workpieces. Specifications: ●Width (mm): 38 ●Height (mm): 12 ●Screw dimensions: M16 x 2.0 ●Tightening force (kN): 7 ●Compatible bolt: M16 ●Face size (mm): 10 ●Stroke (mm): 6 ●Top diameter (mm): 38 ●Load capacity (kN): 7 Material/Finish: ●Steel (S45C) ●Treatment: Hardened (35HRC), plated (clamp ring)
