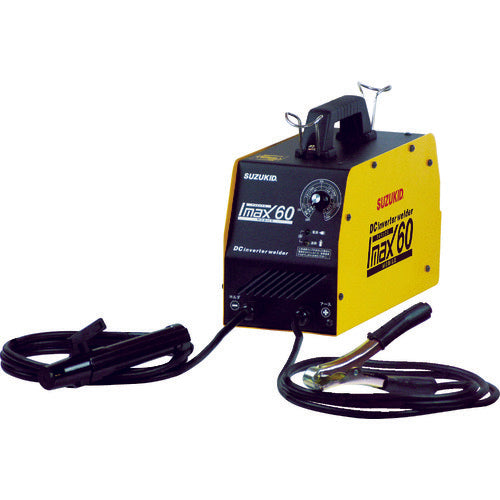

SUZUKID Arc Welding Machine IMAX 60 SIM-60 1 unit

Catalog number: SIM-60 Features: ●100V dedicated DC inverter welding machine. ●Inverter control for beautiful finish. ●Lightweight type for easy portability. ●Noise countermeasures have been taken in accordance with the Electrical Appliance and Material Safety Act. ●When used with a household outlet (100V, 15A), the maximum plate thickness that can be welded is 3mm. Applications: ●For welding mild steel/stainless steel. Specifications: ● Welding rod diameter (mm): 1.4-2.0 ● Input voltage (V): Single phase 100 ● Rated input (kVA): 2.2 ● Output current (A): 60 ● Duty rate (%): 20 ● Width (mm): 132 ● Depth (mm): 328 ● Height (mm): 239 ● Power cord length (m): 2.0 ● Frequency (Hz): Compatible with 50/60Hz ● Weldable materials: Mild steel, stainless steel ● Weldable plate thickness (mm): 1.2-4.0 ● Secondary cable length (m): 2.0 ● Earth cable length (m): 2.0 ● Weldable materials: Iron stainless steel castings ● Frequency: 50Hz/60Hz ● With over-duty prevention function ● With hot start function (Instantly flows a large output current at the time of arc start, making the arc start smooth) Set contents/accessories: ●Primary power cable 2m ●Holder side cable 2m ●Cable with earth clip 2m ●2P/100V adapter ●Handheld light shield
