Taica Vibration Insulator Plate (Rubber Coated) Steel 25-35kg SF-30-STEEL 1 piece

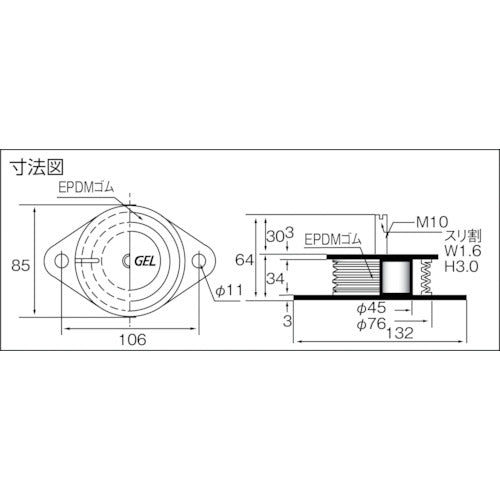

Catalog number: SF-30-STEEL Features: ● Designed with a low natural frequency, it can absorb vibrations in the low frequency range. ● Covered with bellows-type EPDM rubber, it is even more durable and suitable for outdoor use. ● Provides stable vibration absorption performance in the range of -20 to 90°C. ● Absorbs vibrations of equipment weighing 100 to 300 kg with four-point support. ● Type with plate on the bottom and bolts molded integrally on the top. Applications: ● Vibration absorption of vacuum pumps and compressors. Specifications: ● Total height (mm): 64 ● Gel height (mm): 28 ● Screw dimensions: M10 ● External dimensions (mm): 132, 85 ● Recommended frequency (Hz): 13 and above ● Suitable load (kg): 25 to 35 Materials/Finish: ● Rubber: Silicone gel, EPDM ● Bolt: Iron (trivalent chromate plating) ● Plate: Iron (trivalent chromate plating)
