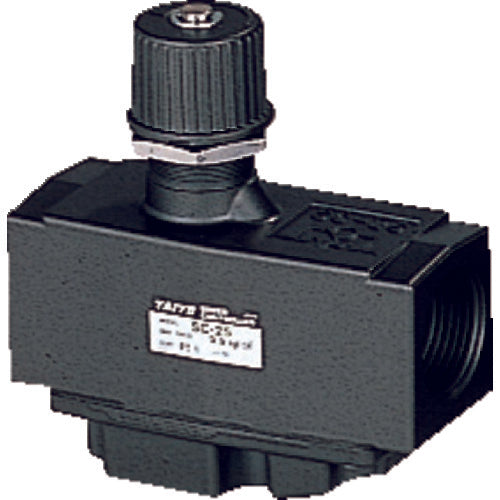

TAIYOH Speed ​​Controller 1 SC-25 1 piece

Catalogue number: SC-25 Features: ●Ideal for controlling the speed of actuators. ●Easy to fine-tune flow rate. ●Meter-in and meter-out vary depending on installation direction. Specifications: ●Connection diameter: Rc1 ●Connection diameter cylinder side: Rc1 ●Operating pressure (MPa): 0.05 to 1 ●Operating fluid: Air ●Fluid temperature (℃): +5 to +60 ●Effective cross-sectional area (［［MM2］］): 186.1 ●Flow rate (L/min): 20000 ●Operating temperature range: 5 to 60℃ ●Operating pressure: 0.05 to 1MPa Material/Finish: ●Aluminum alloy
