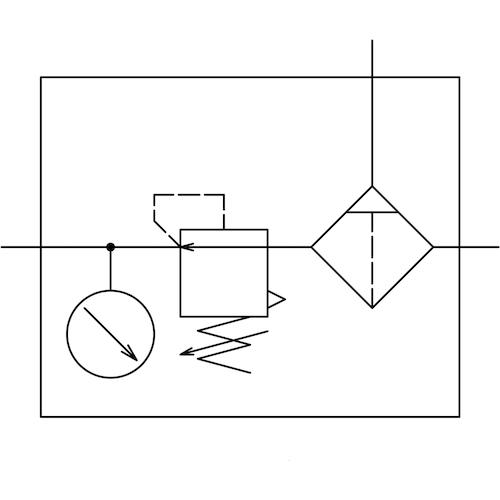

TAIYO Filter Regulator (with bracket and square pressure gauge) EFR3-10-BD 1 piece

Catalog number: EFR3-10-BD Features: ●Adjusts air pressure and removes water droplets and debris from the air to supply clean air. Specifications: ●Filtration accuracy (μm): 5 ●Operating pressure (MPa): 1 ●Set pressure (MPa): 0.05 to 0.85 ●Connection diameter: Rc3/8 ●Total length (mm): 220 ●Total width (mm): 62 ●Pressure gauge: Square ●Drain storage volume (cm3): 35 ●Operating temperature range: -5 to +60°C (but do not freeze) ●Filter element (μm): 5 ●Drain storage volume (cm3): 35 ●Drain discharge method: Manual ●Operating fluid: Air Set contents/accessories: ●Bracket ●Square pressure gauge Note: ●The manual drain automatically discharges drain when the pressure falls below 0.05MPa.
