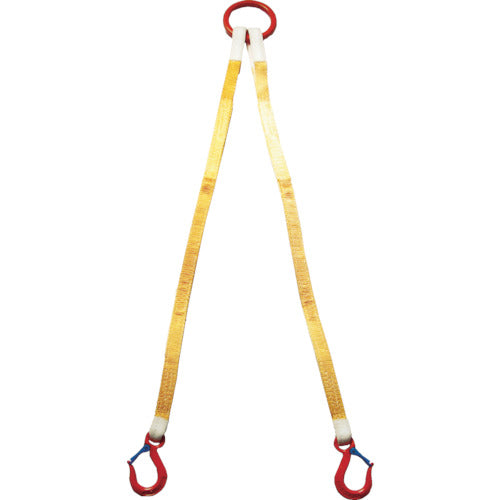

TAIYOH [Sold out and discontinued] 2-strand Inclined Lifting Sling for 5t x 2m (1011729) 2ILS 5TX2 1 S

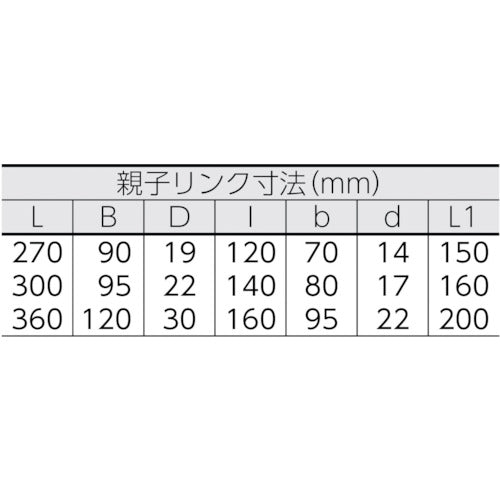

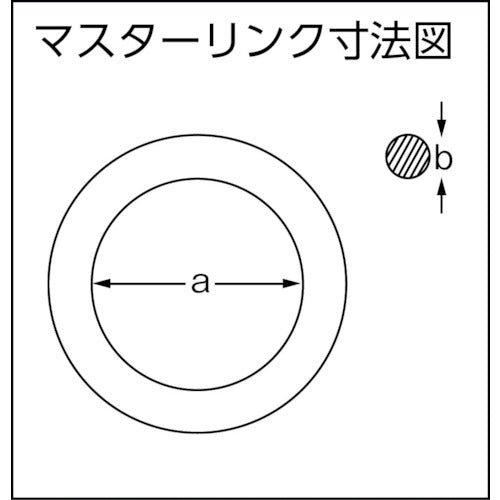

Catalog number: 2ILS 5TX2 Features: ●Belt slings are light and soft, improving work efficiency. ●Large inner diameter rings can accommodate large hooks, making slinging easier. ●Belt sling set with two lifting rings (hyper rings) and hooks (V hooks). ●The working load of the lifting device (sling) is set so you can select the appropriate one according to the load you want to lift. Applications: ●For slinging work at construction and civil engineering sites and various factories. Specifications: ●Basic load capacity (t): 5 ●Belt dimensions (mm) width x thickness: 100 ●Reach (m): 2 ●Hyper ring dimensions (mm) a: 200 ●Hyper ring dimensions (mm) b: 30 ●V hook dimensions (mm) c: 46 ●V hook dimensions (mm) d: 60 ●V hook dimensions (mm) e: 36 ●V hook dimensions (mm) f: 16 ●V hook dimensions (mm) g: 42 ●V hook dimensions (mm) p: 171 ●Ring for 5t ●Hook for 3.2t ●Safety factor of 5 times or more ●Sling set with hook
