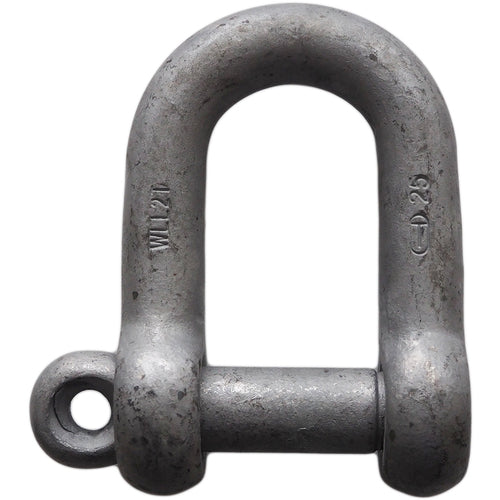

TAIYOH Twist Shackle Dob 16mm (3010901) NGS16G 1 piece

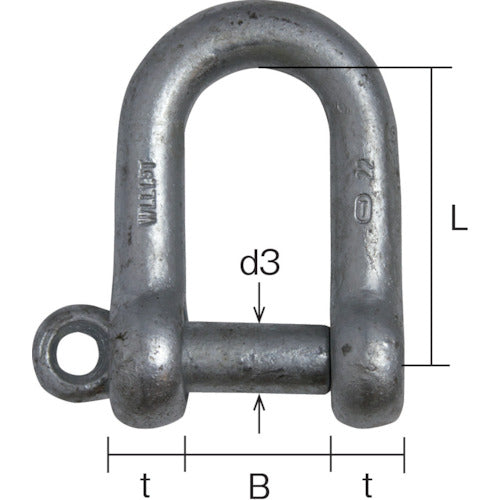

Catalogue number: NGS16G Features: ● A shackle with a wider opening than JIS standard shackles, making it highly versatile. Applications: ● Used as a cargo handling and connecting fixture in civil engineering and construction work, etc. Specifications: ● Basic load capacity (t): 0.8 ● Thread diameter: W5/8 ● D (mm): 32 ● L1 (mm): 60 ● d (mm): 16 ● Dimension (mm) B: 32 ● Dimension (mm) t: 16 ● Dimension (mm) d3: 16 ● Dimension (mm) D: 32 ● Dimension (mm) L: 60 ● Dimension (mm) d1: 16 ● Regular shackle ● Hot-dip galvanized product Material/Finish: ● Steel ● Surface treatment: Hot-dip galvanized Caution: ● Use below the load capacity.
