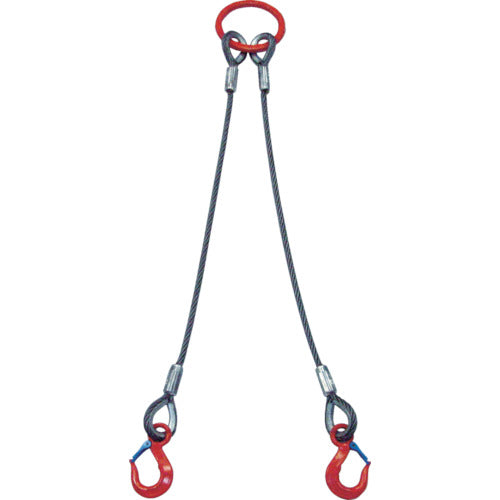

TAIYOH 2-piece wire sling for 2t x 1.5m (1011689) 2WRS 2TX1.5 1 S

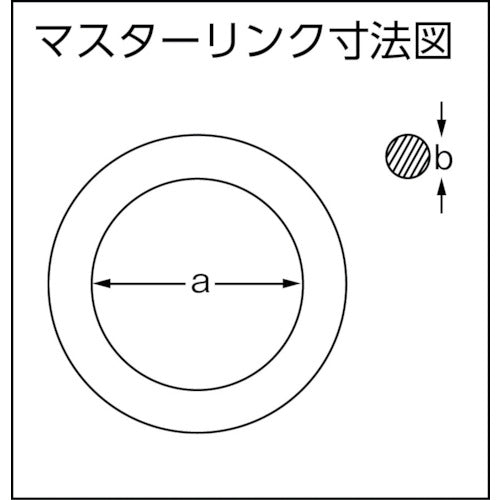

Catalog number: 2WRS 2TX1.5 Features: ●By using a V-hook, the wire can be prevented from coming off due to standing, improving safety. Applications: ●For slinging work at construction and civil engineering sites and various factories. Specifications: ● Sling diameter (mm): 14 ● Type: 2-point suspension ● Safe working load for 2-point suspension (t): 2 ● Reach (m): 1.5 ● Hyper ring dimension (mm) a: 140 ● Hyper ring dimension (mm) b: 20 ● V hook dimension (mm) c: 33 ● V hook dimension (mm) d: 45 ● V hook dimension (mm) e: 25 ● V hook dimension (mm) f: 11 ● V hook dimension (mm) g: 30 ● V hook dimension (mm) p: 123 ● Ring for 2t ● Hook for 1.25t ● Safety factor 5 times or more ● [Combination] Hyper ring + wire rope + V hook ● [Wire rope] 6 x 24 O/O, with thimble and locking stopper processing Note: ● The working load is based on a suspension angle of 60°.
