大洋製器工業(株)

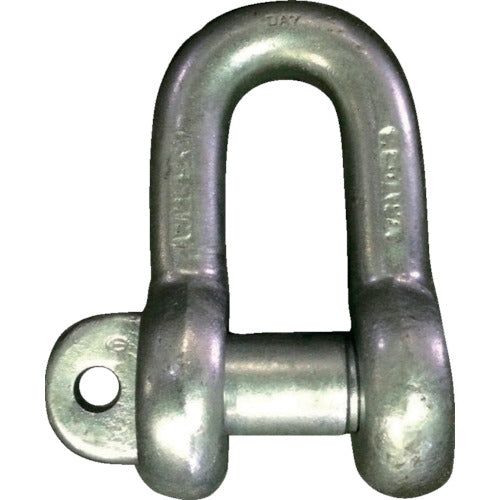

TAIYOH JIS Shackle M Class Dob SC-22 (1010613) JSC22G 1 pc
TAIYOH JIS Shackle M Class Dob SC-22 (1010613) JSC22G 1 pc
Regular price
¥3,035
Regular price
Sale price
¥3,035
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

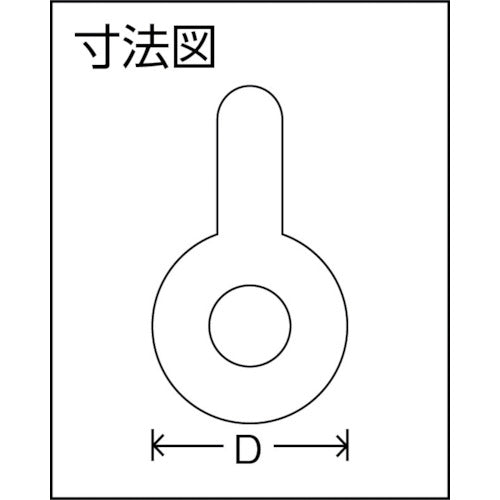

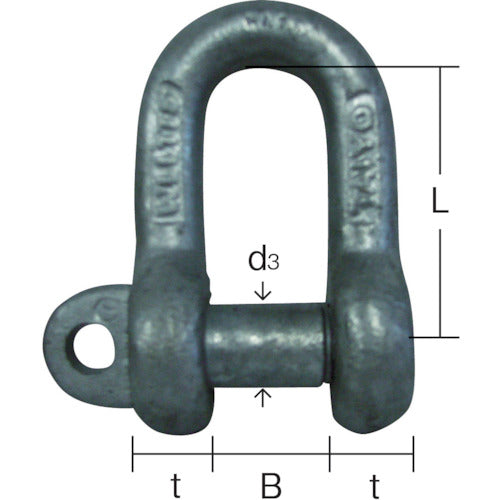

Catalogue number: JSC22G Features: ●Standard shackle. ●Available in a wide range of sizes for a variety of uses. Applications: ●Used as a cargo handling and connecting fixture in civil engineering and construction work. Specifications: ●Basic load capacity (t): 3.15 ●Dimension (mm) B: 34 ●Dimension (mm) t: 22 ●Dimension (mm) d3: 26 ●Dimension (mm) D: 55 ●Dimension (mm) L: 88 ●Hot-dip galvanized product ●Screw-in type ●Straight type ●JIS type Material/Finish: ●Steel ●Surface treatment: Hot-dip galvanized Caution: ●Use below the load capacity.
