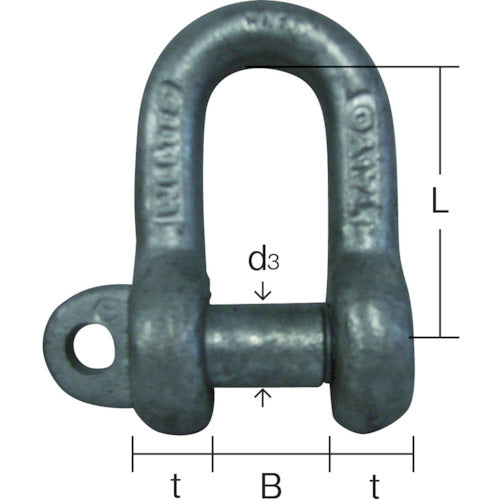

Catalogue number: JSC14 Features: ●JIS standard shackle. ●Available in a wide range of sizes for various uses. Applications: ●Used as a cargo handling and connecting fixture in civil engineering and construction work. Specifications: ●Basic load capacity (t): 1.25 ●Dimension (mm) B: 24 ●Dimension (mm) t: 14 ●Dimension (mm) d3: 17 ●Dimension (mm) D: 36 ●Dimension (mm) L: 56 ●Dimension (mm) d1: 18 ●Screw-in type ●Straight type ●Uncoated product ●JIS type Material/Finish: ●Steel ●Surface treatment: Black (unplated) Caution: ●Use below the load capacity.
