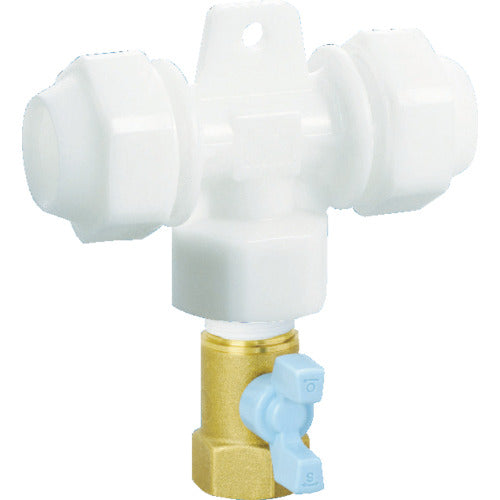

TBC Light Air Valve Female Tee White AIRWT25-FTV 1 pc

Catalog number: AIRWT25-FTV Features: ●Lightweight pipe. ●Easy to cut pipe, no need for threading, easy installation. ●Pipe can be bent and maintains its shape. ●Pipe with excellent corrosion resistance. Uses: ● Compressed air (for low pressure) Specifications: ● Connection diameter D: Rc3/4 ● Nominal diameter: 25 ● Connection diameter D1: Rc3/4 ● Compatible pipe nominal diameter (mm): 25 ● Total length (mm): 133 ● Type: Tee ● Fluid used: Compressed air (for low pressure) ● Hexagonal side W1 (mm): 56 ● Hexagonal side W2 (mm): 47.5 ● R: Rc3/4 ● φD (mm): 61 ● W1 (mm): 56 ● L1 (mm): 133 ● L2 (mm): 49 ● L3 (mm): 103 ● W2 (mm): 47.5 ● Operating pressure ● Operating temperature: 0 to 60°C ● Maximum operating pressure: Less than 1.0MPa ● Operating environment temperature: 0 to 60°C ● Operating environment: Indoor piping Material/Finish: Body: Polyacetal (POM), Brass (C3604BD) O-ring: Hydrogenated nitrile rubber (HNBR) Valve: Brass (C3771BE)
