TBC Light Air Valve Female Tee AIR20-FTV 1 pc

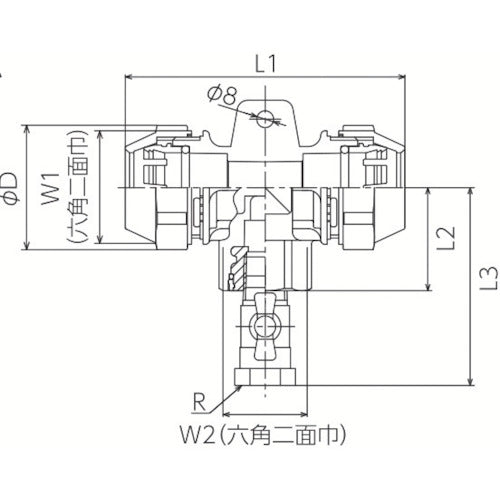

Catalog number: AIR20-FTV Features: ●Lightweight pipe. ●Easy to cut pipe, no need for threading, easy installation. ●Pipe can be bent and maintains its shape. ●Excellent corrosion resistance. Applications: ●Compressed air (for low pressure) Specifications: ●Connection port size D: Rc1/2 ●Nominal size: 20 ●Nominal size (mm): 20 ●Maximum operating pressure (MPa): Less than 1.0 ●Compatible pipe nominal size (mm): 20 ●Type: Tee ●Fluid used: Compressed air (for low pressure) ●Hexagonal width W1 (mm): 49 ●Hexagonal width W2 (mm): 42 ●Fluid used: Compressed air (for low pressure) ●Operating temperature: 0 to 60°C ●Maximum operating pressure: Less than 1.0MPa Material/Finish: ●Polyacetal (POM) ●O-ring: Hydrogenated nitrile rubber (HNBR)
