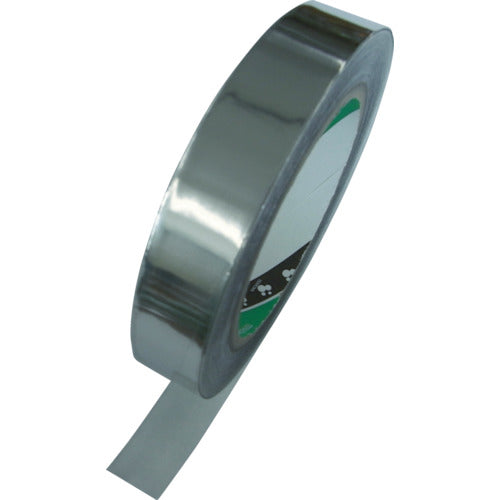

TERAOKA Conductive Aluminum Foil Adhesive Tape No. 8303 25mm x 20M 8303 25X20 1 roll

Catalog number: 8303 25X20 Features: ●High conductivity in the thickness direction, soldering is possible on the back. ●Glossy finish. ●UL certified. Applications: ●Electromagnetic shielding, earthing, static electricity removal, cable and connector shielding, housing shielding, short rings for switching transformers, etc. Specifications: ●Color: Silver ●Width (mm): 25 ●Length (m): 20 ●Thickness (mm): 0.085 ●Adhesive strength (N/10mm): 3.92 ●Adhesive strength (N/25mm): 9.81 ●Tensile strength (N/10mm): 32.36 ●Tensile strength (N/25mm): 80.9 ●Core diameter: 3 inches (76mm) ●Cutter required for cutting ●File NO. E56086 UL510 Flame retardant Material/Finish: ●Base material: Aluminum foil ●Adhesive: Conductive acrylic
