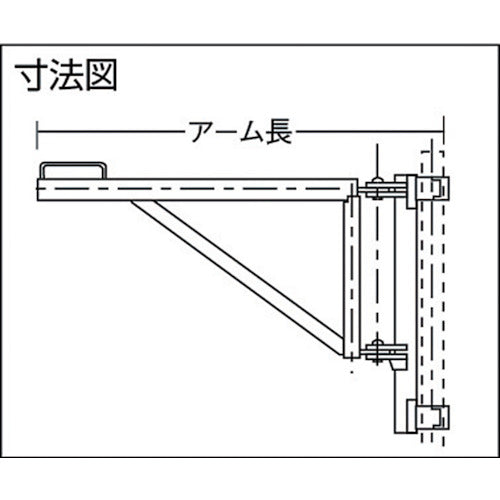

Catalogue number: 140A Features: ●Combined with a baby hoist, it is easier to take in loads. ●Manual rotation allows for safe operation. ●Can be fixed to scaffolding pipes with a clamp. Applications: ●For single-tube pipes, wedge scaffolding, and next-generation scaffolding. Specifications: ●Rated load (t): 0.14 ●Arm length (m): 0.84 ●A (mm): 854 ●B (mm): 577 ●Rotation angle (°): 240 ●Compatible pipe diameter: 42.7 to 48.6 mm ●Applicable hoists: BH-N300, TK62, TK63 ●Rotation radius: 660 mm
