TKK Mighty Arm 250L Split Type 250L 1 unit
TKK Mighty Arm 250L Split Type 250L 1 unit
Regular price
¥54,912
Regular price
Sale price
¥54,912
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

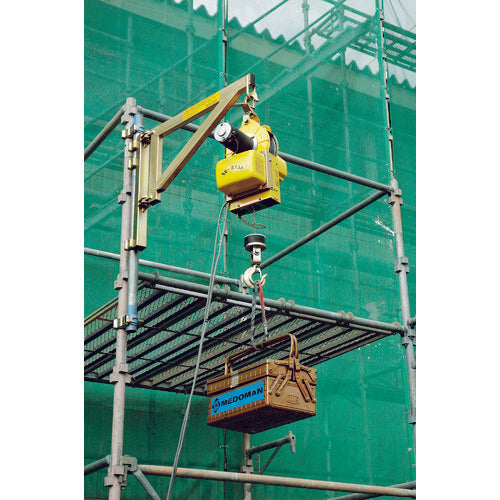

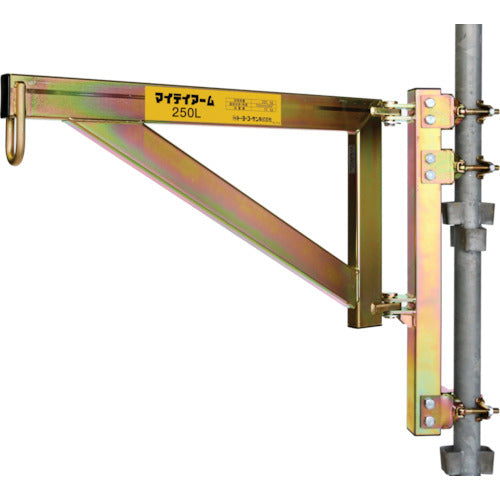

Catalogue number: 250L Features: ●Combined with a baby hoist, it is easier to take in loads. ●Manual rotation allows for safe operation. ●Can be fixed to scaffolding pipes with a clamp. Applications: ●For single-tube pipes, wedge scaffolding, and next-generation scaffolding. Specifications: ●Rated load (t): 0.25 ●Arm length (m): 0.86 ●A (mm): 835 ●B (mm): 600 ●Rotation angle (°): 200 ●Compatible pipe diameter: 42.7 to 48.6 mm ●Applicable hoists: BH-N300, TK62, TK63 ●Rotation radius: 700 mm
