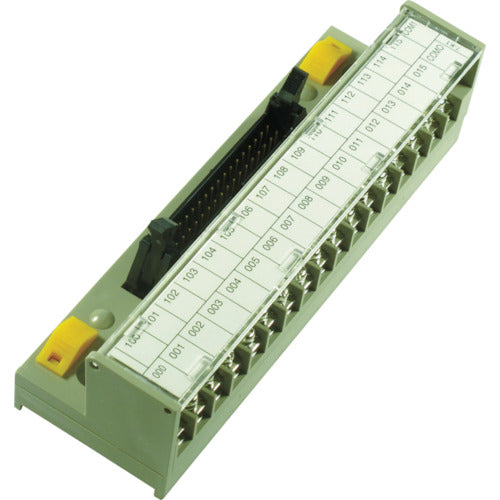

TOGI PLC compatible connector terminal block (PLC manufacturer Keyence) PCN7-1H40-TB40-K-CPU 1 piece

Catalog number: PCN7-1H40-TB40-K-CPU Features: ●The terminal block and connector are connected on the board, so there is no need to worry about incorrect wiring. ●The terminal numbers are written to match the terminal numbers of each company's PLC. Applications: ●A relay terminal with an integrated connector and terminal block. ●Ideal as an interface for PLCs. Specifications: Color: Gray Number of poles: 40 Length (mm): 40 Width (mm): 149 Height (mm): 36 Type: Screw type Rated insulation voltage (V): AC DC125V Mounting pitch (mm): 110 Screw type 7mm pitch terminal block Rated voltage: DC125V Rated current: 1A Withstand voltage (V): 600V/1 minute Ambient temperature during use: -10℃ to +50℃ Compatible with Keyence PLC (KV-1000, KV-3000, KV5000 series, expansion input/output unit) terminal numbers Terminal number assignments 1 to 20 (lower row), 21 to 40 (upper row) Note: M: Mitsubishi Electric, O: Omron, K: Keyence. Some PLCs are not supported. For Keyence cables, please contact the manufacturer.
