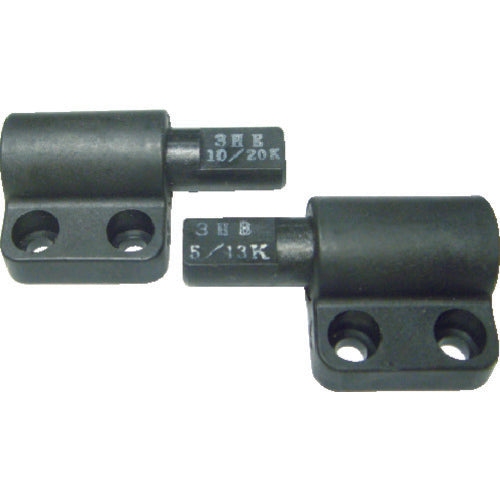

TOK Rotary Damper TD27/TD28 TD27B1-5/13K 1 piece

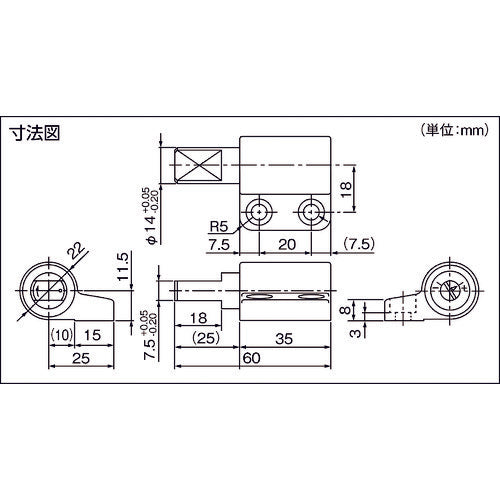

Catalog number: TD27B1-5/13K Features: ●Damper torque can be adjusted with the cap on the side. ●Can be used as a hinge by using a dedicated bracket. Applications: ●For soft closing of equipment covers, etc. Specifications: ●Total length (mm): 60 ●Rated torque (N・m): 0.49 to 1.27 ●Number of screw holes: 2 ●Hole diameter (mm): 6 ●Rated torque (N・m) rotation direction: CCW ●External dimensions (mm): 36 ●Rotation angle: 110° ●Durability: 100,000 openings and closings (natural fall) ●Standard: 70° operation for 3 to 15 seconds with a weight equivalent to 1.27N･m ●Operation temperature range: 0 to 40°C Materials/Finish: ●Housing, cap, shaft: Glass fiber reinforced polybutylene terephthalate resin (PBT-GF) ●Adjustment cap: Zinc die-casting Caution: ●In addition to the rotary damper, please prepare a stopper. ●Avoid using with a load exceeding the set torque. ●Applying radial or thrust loads to the shaft may result in oil leakage or damage.
