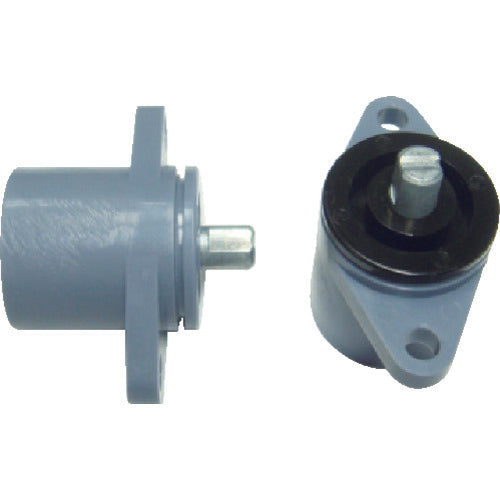

TOK Rotary Damper TD38 TD38B1-3K 1 piece

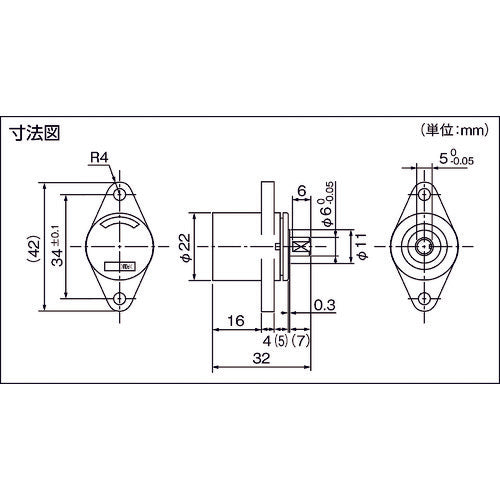

Catalog number: TD38B1-3K Features: ●The product weight has been reduced by using plastic. ●It is a one-way damper. ●There is no significant resistance when starting to close from an open state. ●There is also no significant resistance when opening from a closed state. Applications: ●For soft closing of equipment covers, etc., and soft closing of flappers. Specifications: ●Total length (mm): 32 ●Rated torque (N・m): 0.29 ●Number of screw holes: 2 ●Hole diameter (mm): 4.2 ●Rated torque (N・m) rotation direction: CCW ●External dimensions (mm): 22 ●Rotation angle: 180° ●Durability: 100,000 openings and closings (natural fall) ●Standards: 150° operation between 2 and 10 seconds with a weight equivalent to the rated torque ●Operating temperature range: 0 to 40°C Materials/Finish: ●Housing, cap: Polyacetal resin (POM) ●Shaft: Zinc die-casting Caution: ●In addition to the rotary damper, please prepare a stopper. ●Avoid using with a load that exceeds the set torque. ●Applying radial or thrust loads to the shaft may result in oil leakage or damage.
