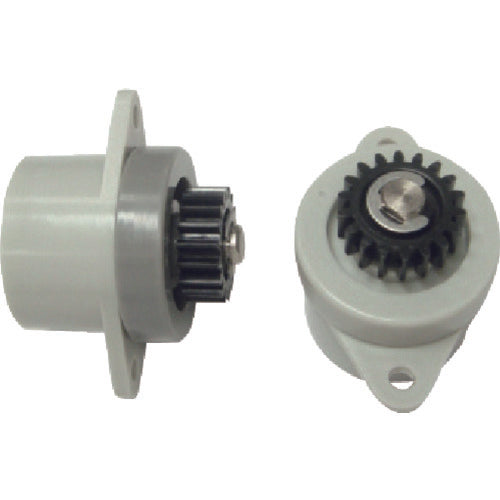

TOK Rotary Damper TD58 TD58R1-3K 1 piece

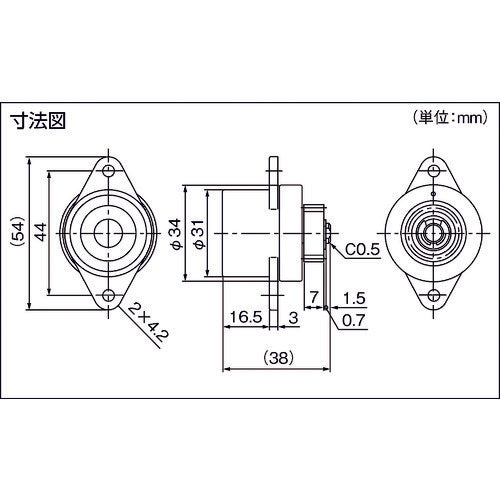

Catalog number: TD58R1-3K Features: ●Endless damper with a lineup of maximum torque of 0.8 N･m. ●Damper effect in only one direction. Applications: ●For damping of sliding doors (gravity type) of equipment. ●For soft closing of equipment covers, etc. Specifications: ●Total length (mm): 38 ●Rated torque (N･m): 0.30 ●Number of screw holes: 2 ●Hole diameter (mm): 4.2 ●External dimensions (mm): 31 ●Durability: 100,000 reciprocations (rack and pinion test) ●Standard: 0.24 to 0.36 N･m (at 30 rpm) ●Operating temperature range: 0 to 40°C Materials/Finish: ●Housing, cap, gear: Polyacetal resin (POM) ●Shaft: Stainless steel Caution: ●Avoid using with a load that exceeds the set torque. ●Applying radial or thrust load to the shaft may cause oil leakage or damage.
