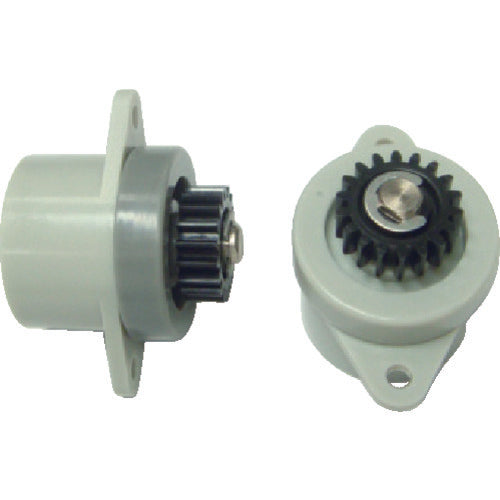

TOK Rotary Damper TD58 TD58R1-5K 1 piece

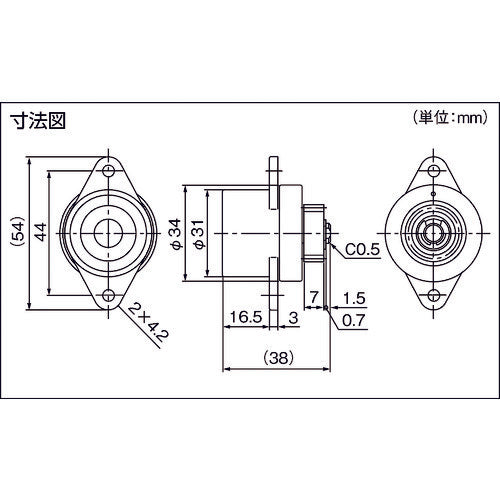

Catalog number: TD58R1-5K Features: ● Endless damper with a lineup of maximum torque of 0.8 N･m. ● Damper effect in only one direction. Applications: ● For damping sliding doors (gravity type) of equipment. ● For soft closing of equipment covers, etc. Specifications: ●Total length (mm): 38 ●Rated torque (N・m): 0.50 ●Number of screw holes: 2 ●Hole diameter (mm): 4.2 ●Rated torque (N・m) direction of rotation: CW ●External dimensions (mm): 31 ●Durability: 100,000 reciprocations (rack and pinion test) ●Standard: 0.40 to 0.60 N･m (at 30 rpm) ●Gear specifications ●Type: Standard spur gear ●Tooth shape: Involute, straight teeth ●Module: 1 ●Pressure angle: 20° Number of teeth: 18 ●Operating temperature range: 0 to 40°C Materials/Finish: ●Housing, cap, gear: Polyacetal resin (POM) ●Shaft: Stainless steel Caution: ●Avoid using with a load that exceeds the set torque. ●Applying radial or thrust load to the shaft may cause oil leakage or damage.
