TOK Rotary Damper TD89 TD89A1B1-100K 1 piece

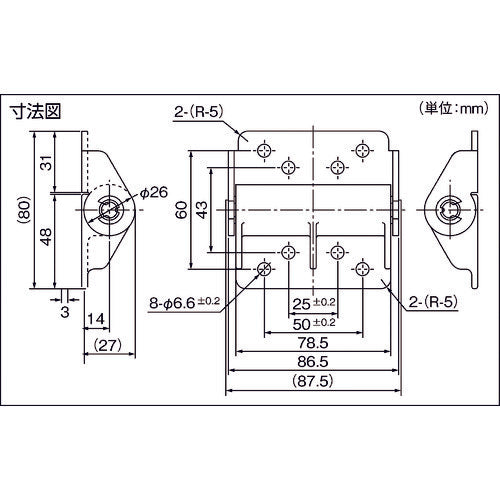

Catalog number: TD89A1B1-100K Features: ● Easy to install with hinge shape. ● Our largest damper torque. Applications: ● For slowing down equipment covers, etc. Specifications: ● Overall length (mm): 87.5 ● Rated torque (N・m): 10.0 ● Number of screw holes: 8 ● Hole diameter (mm): 6.6 ● External dimensions (mm): 80 ● Rotation angle: 120° ● Rotation direction: Clockwise ● Durability: 50,000 openings and closings (natural fall) ● Standard: 70° operation for 3 to 12 seconds with a weight equivalent to 10.0 N･m ● Operating temperature range: 0 to 40°C Materials/Finish: ● Damper housing: Zinc die-cast ● Hinge: Stainless steel ● Hinge shaft: SUM + glossy chromate Caution: ● Please prepare a stopper in addition to the rotary damper. ● Avoid using with a load that exceeds the set torque. ● Applying radial or thrust load to the shaft may cause oil leakage or damage.
