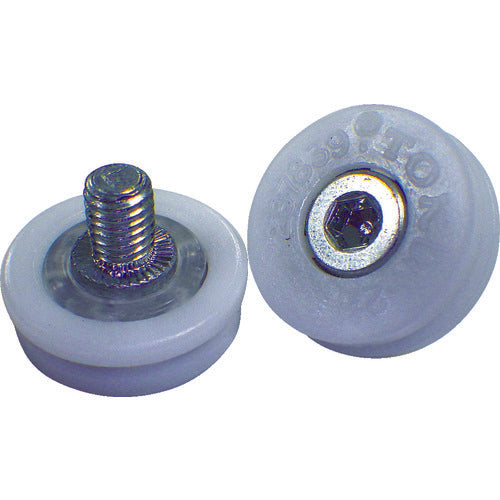

Catalog number: DV-28-B0.5-JH Features: ●By using a hexagonal wrench, it is possible to install with a high tightening force. ●By using plastic, it is less likely to damage the transported object. ●Due to the self-lubricating properties of plastic, it is less likely to break immediately even if the grease runs out. Applications: ●Transport guide ●Wire pulley, etc. Specifications: ●Outer diameter (mm): 28 ●Width (mm): 7 ●Angle M (°): 60 ●Dimensions (mm) R: 0.6 ●Operating temperature range (℃): 0 to 40 ●Roller screw dimensions: M6 ●Thread length (mm): 8 ●Flange thickness (mm): 0.5 ●Hexagonal hole (mm): Nominal 4 ●D1 dimension (mm): 24 ●Operating temperature range: 0 to 40℃ Material/Finish: ●Inner race: SWCH ●Ball: SWCH ●Outer race: POM ●Retainer: PP Caution: ●Be careful not to apply a load in the axial direction.
