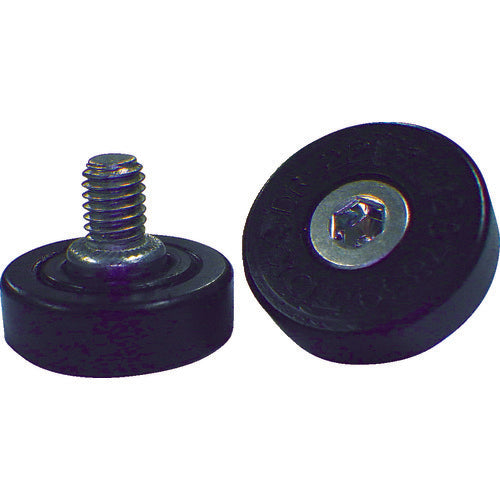

TOK Plastic Bearing ER-B-JH ER-35-B0.5-JH 1 piece

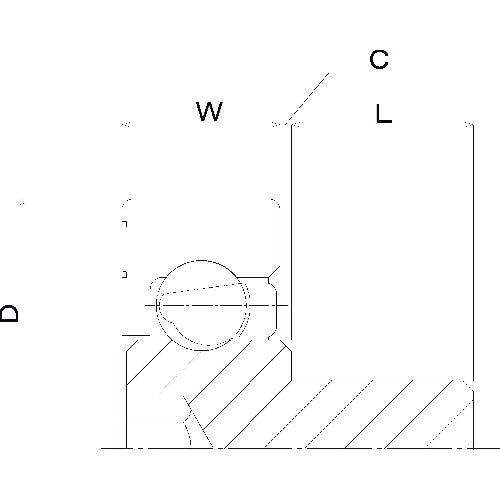

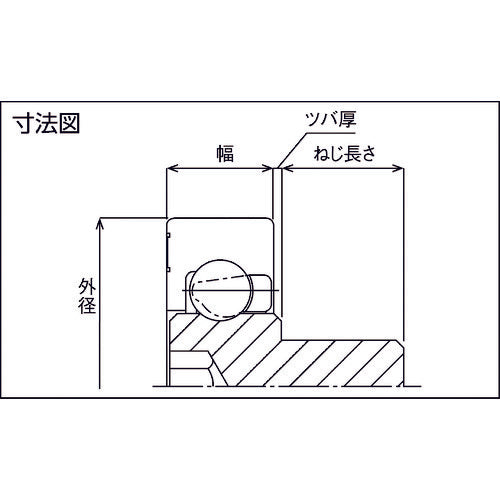

Catalog number: ER-35-B0.5-JH Features: ● By using a hexagonal wrench, it is possible to install with a high tightening force. ● By using plastic, it is difficult to damage the transported object. ● Due to the self-lubricating property of plastic, it is difficult to break immediately even if the grease runs out. ● By using conductive resin and conductive grease, it prevents static electricity from being charged. Applications: ● Transport guides that do not like static electricity, etc. Specifications: ● Outer diameter (mm): 35 ● Width (mm): 7 ● Operating temperature range (℃): 0 to 40 ● Roller screw dimensions: M6 ● Screw length (mm): 8 ● Flange thickness (mm): 0.5 ● Hexagonal hole (mm): Nominal 4 ● Operating temperature range: 0 to 40℃ Material / Finish: ● Inner race: SWCH ● Ball: SWCH ● Outer race: Conductive POM ● Retainer: Conductive PA Caution: ● Be careful not to apply a load in the axial direction.
