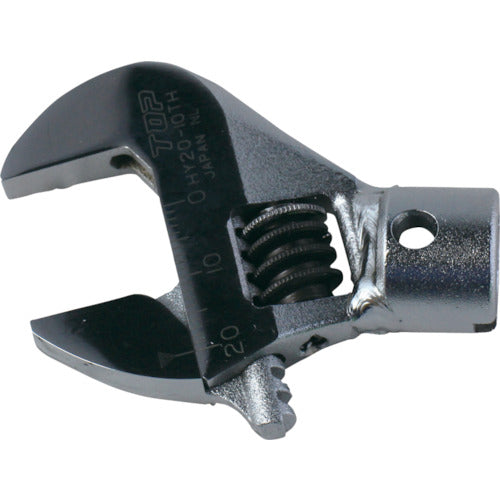

TOP Monkey type torque head (with scale) Jaw opening 0-20mm HY20-10TH 1 pc

Catalog number: HY20-10TH Features: ●The insertion direction into the torque handle can be changed, allowing torque tightening work with a swing space of 30°. A typical monkey-type torque wrench requires a swing space of 60°. ●Equipped with a backlash-free worm (PAT.) that clamps the rack part of the lower jaw with two worms, eliminating play, reducing the gap between the bolt/nut and the gripping surface, and preventing damage to corners. ●With scale. Applications: ●Wide range of applications including bicycles, automobiles, architecture, construction, waterworks, and the power industry. Specifications: ●Total length (mm): 63 ●Insertion diameter (φ): 10 ●Inner diameter of connector part (mm): φ10 ●Thickness (mm): 10 ●Effective length (mm): 50 ●Compatible torque handle: DT030-10BN ●Compatible torque handle preset type: T-6NTG, 25NTG ●Compatible torque handle digital type: DT030-10BN ●Min. width (mm): 0 ●Max. width (mm): 20 ●Opening dimension (mm): 0-20 ●Outside head width (mm): 46 ●Thickness T1 (mm): 10 ●Thickness T2 (mm): 6 Caution: ●Do not insert into torque handles with plug pin connectors. Insert into steel ball type. ●When inserting bolts and nuts, adjust the opening to the two-sided width and insert so that it hits the spring pin. ●Do not hang diagonally or shallowly.
