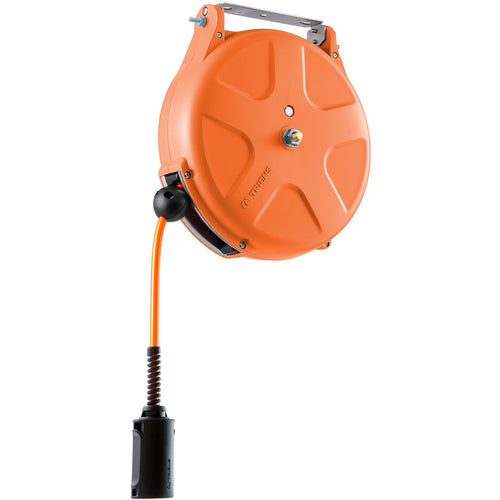

TRIENS Air Hose Reel, Inner Diameter 8mm x 6m, Orange, SHS-306A-OR, 1 unit

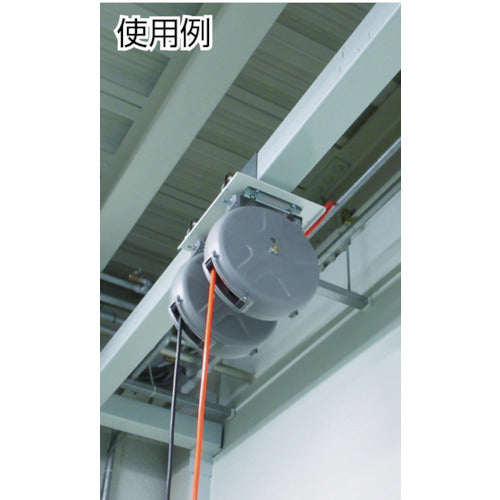

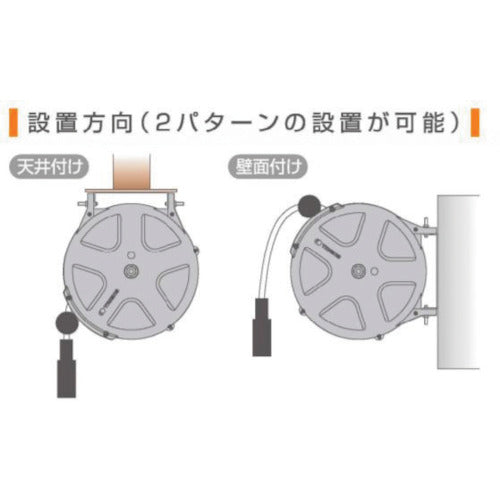

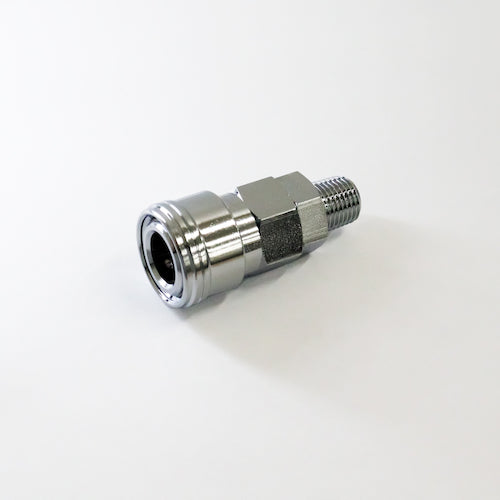

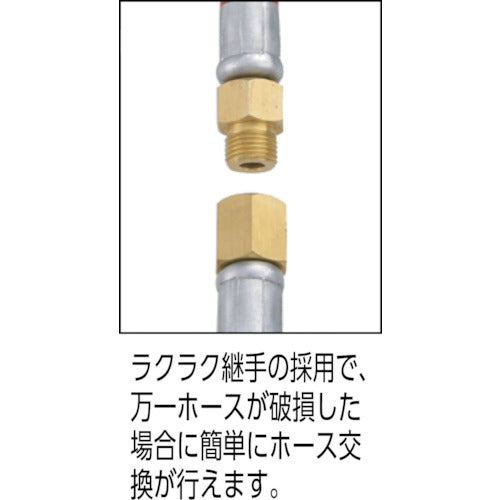

Catalog number: SHS-306A-OR Features: ● Fittings are used for easy hose replacement. ● Small and lightweight, so it does not take up much space. ● Uses a mounting base that is easy to attach and detach. ● Can be swiveled as needed. ● Uses an elbow that allows for free handling of the input hose. Applications: ● For air supply when using pneumatic tools. ● Various assembly lines, maintenance factories, etc. Specifications: ● Hose inner diameter x outer diameter (mm): 8.0 x 12 ● Total hose length (m): 6 ● Primary mounting side: Male free R3/8 ● Secondary mounting side: Rc3/8 female thread ● Primary hose length (m): 1.0 ● Secondary hose length (m): 6 ● Maximum operating pressure (MPa): 1.4 ● Operating pressure (MPa): 1.4 ● Width (mm): 290 ● Depth (mm): 152 ● Height (mm): 314 ● Outer diameter (mm): 12 ● Installation type: Hanging/wall mounting●Inner diameter (mm): 8.0●Compatible tube outer diameter (mm): 12●Color: Orange●Hose material: Urethane●Operating pressure: 1.4MPa●Hose inner x outer diameter (mm): 8.0 x 12●Total hose length: 10m●Total primary hose length (m): 1.0●Body dimensions (mm): 314 x 290 x 152●Body weight (kg): 3.5●Primary mounting side: Male swivel R3/8●Secondary mounting side: Rc3/8 female thread Material/Finish:●Hose: Polyurethane●Body cover: Resin Set contents/Accessories:●Mounting base set●Primary side hose 1m●Female coupler Note:●Products with "FA" at the end of the model number are brake type.
