TRIENS Slow Motion Air Hose Reel Inner Diameter 8mm x 10m SHM-310ASLOW 1 unit

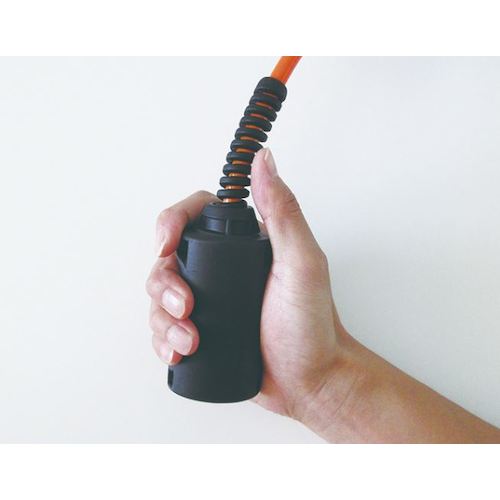

Catalog number: SHM-310ASLOW Features: ● Equipped with a brake mechanism that slowly rewinds, giving top priority to safety. ● Easy hose replacement mechanism (fitting specifications). ● Adopts an elbow that allows free handling of the input hose. ● Adopts a resin protective spring at the end of the hose to reduce hose damage. Applications: ● For supplying air when using pneumatic tools. ● Various assembly lines, maintenance factories, etc. Specifications: ● Hose inner diameter x outer diameter (mm): 8.0 x 12 ● Total hose length (m): 10 ● Primary mounting side: Male swivel R3/8 ● Secondary mounting side: Rc3/8 female thread ● Primary hose length (m): 1.0 ● Secondary hose length (m): 10 ● Maximum operating pressure (MPa): 1.4 ● Width (mm): 390 ● Depth (mm): 187 ● Height (mm): 424 ● Outer diameter (mm): 10 ● Installation type: Ceiling-mounted/wall-mounted ● Inner diameter (mm): 8.0 ● Color: Body: Gray ● Hose material: Polyurethane Material/Finish: ● Hose: Urethane Set contents/Accessories: ● Complete mounting base ● Female coupler
