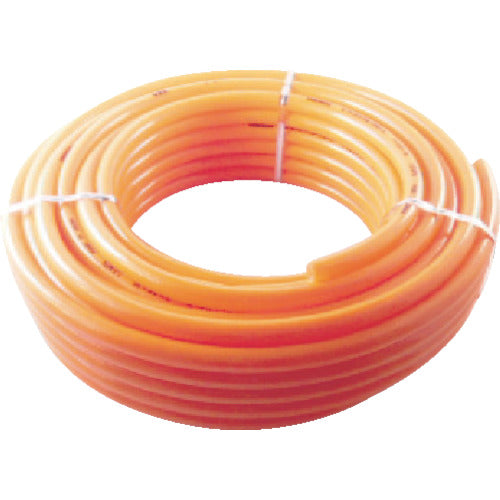

TRUSCO α Urethane Braided Hose 11X16mm 5m TUB-1105 1 roll

Catalog number: TUB-1105 Features: ●Low-cost version of urethane blade hose. ●Excellent oil resistance and pressure resistance. ●Excellent flexibility makes it difficult to curl. Specifications: ●Color: Orange ●Outer diameter (mm): 16 ●Inner diameter (mm): 11 ●Total length (m): 5 ●Thickness (mm): 2.5 ●Fluid used: Air ●Fluid temperature (℃): -5 to 60℃ (no freezing) ●Operating pressure: 1.5MPa (when used at room temperature) Material/Finish: ●Polyurethane Caution: ●Use couplings designed specifically for blade hoses. Also, be sure to check the operating pressure of the coupling you are using. ●Separate the connecting fittings while holding them in your hand. ●After connecting the connecting fittings, pull them lightly from both sides to make sure they do not come loose. ●Use couplings designed specifically for blade hoses. Also, be sure to check the operating pressure of the coupling you are using. If you use the wrong coupling or with the wrong air pressure, the hose may be damaged. ●The normal temperature environment for the operating pressure is approximately 20℃.
