TRUSCO Screw-in conductive rubber caster, stainless steel fittings, swivel, Φ100, TYSST-100RHE, 1 piece

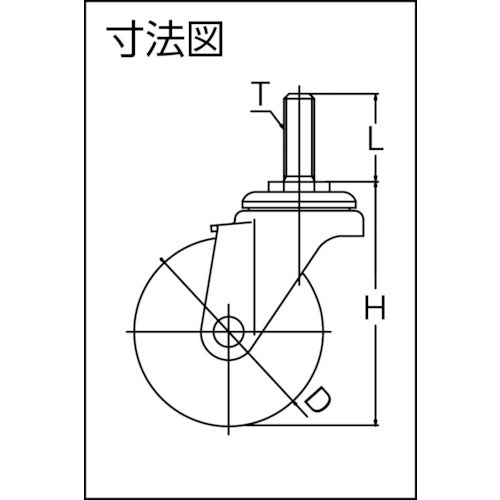

Catalog number: TYSST-100RHE Features: ● Made of stainless steel, it has excellent corrosion resistance and water resistance. ● The conductive rubber wheels make it easy to release static electricity and are also excellent at preventing dust from sticking to them. Applications: ● For transporting electronic and medical equipment that is sensitive to static electricity and dust. Specifications: ● Wheel diameter D (mm): 100 ● Type: Swivel ● Allowable load (daN): 50 ● Allowable load (kgf): 51 ● Wheel width (mm): 25 ● Mounting height H (mm): 126 ● Shaft length L (mm): 35 ● Screw T: M12 ● Screw pitch (mm): 1.75 ● Allowable load (N): 500 ● Screw-in type ● Electrical resistance value: 10 [to the fourth power] Ω (actual measured value, not a guaranteed value.) ● Swivel ● Spanner size: 21mm Material/Finish: ● Metal fittings: Stainless steel (SUS304) ● Wheels: Conductive rubber
