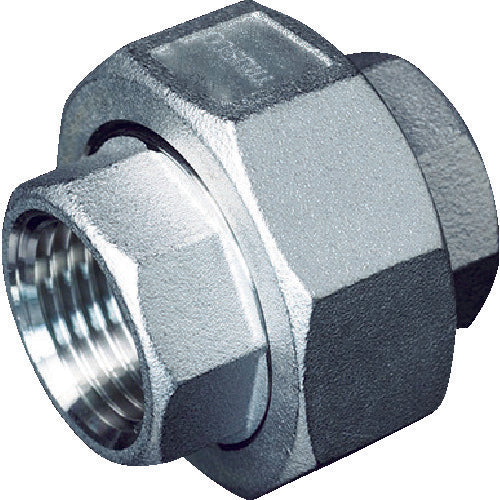

TRUSCO Threaded Pipe Fitting SUS Union 20A TU-20A 1 pc

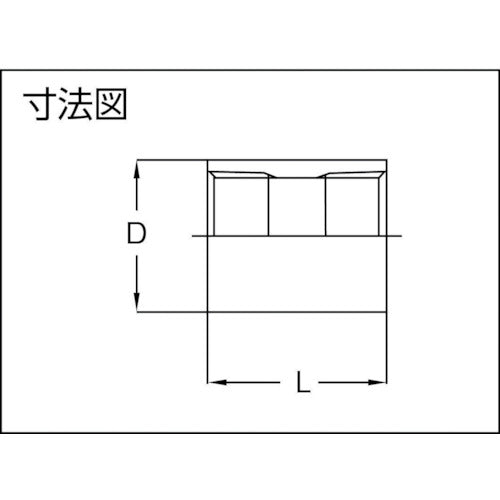

Catalog number: TU-20A Features: ● Stainless steel screw-in fittings used in various equipment. Applications: ● For water, oil, and gas. Specifications: ● Nominal diameter A: 20 ● Nominal diameter B: 3/4 ● L (mm): 44 ● D (mm): 32 ● Maximum allowable pressure (MPa): 1.0 at room temperature ● Operating temperature range (℃): 0 to 100℃ ● Maximum operating pressure: 1.0MPa at room temperature ● Operating temperature range: 0 to 100℃ Material/Finish: ● Stainless steel (SCS13A) Caution: ● Gasket (non-asbestos) is incorporated. Please prepare a gasket that is optimal for your operating conditions. ● Please note that performance cannot be guaranteed if dirt, dust, oil, etc. adhere to the product. ● Do not touch the threads with bare hands as you may cut your hands.
