TRUSCO Spring Washer Nut Trivalent White M10 15pcs Y022-0010 1PK

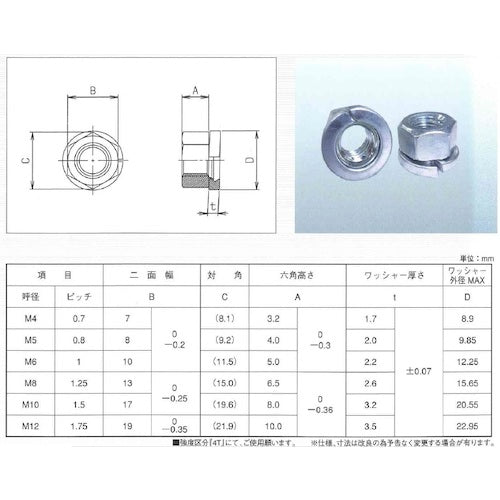

Catalog number: Y022-0010 Features: ● Spring washer prevents loosening. ● The nut and washer are integrated, improving the efficiency of tightening work. Specifications: ● Nominal diameter: M10 x 1.50 ● Two-sided width dimension (mm): 17 ● Height (mm): 8.0 ● Strength category: 4T ● Thread pitch (mm): 1.5 ● Dimension (mm) B: 17 ● Dimension (mm) C: 19.6 ● Dimension (mm) t: 3.2 ● Washer outer diameter (mm): 20.55 ● Dimension (mm) A: 8.0 ● Package: Bolt pack (blister) Material/Finish: ● Steel ● Surface treatment: Trivalent chromate finish (white)
